Fully Insulated Female Receptacle Terminals FDFD Series | ZAIN
The ZAIN FDFD Series Fully Insulated Female Receptacles provide complete dielectric shielding and shock protection for wire connections in control panels, motor starters, automotive electronics, and domestic appliances. Unlike standard semi-insulated terminals, the fully enclosed plastic body completely covers the metal contact and the mating male tab, preventing accidental shorts with adjacent terminals or metal enclosures.
Manufactured from tinned conductive brass surrounded by a full-coverage insulating nylon/PVC housing. The funnel barrel accepts stranded copper wire smoothly for consistent crimp retention.

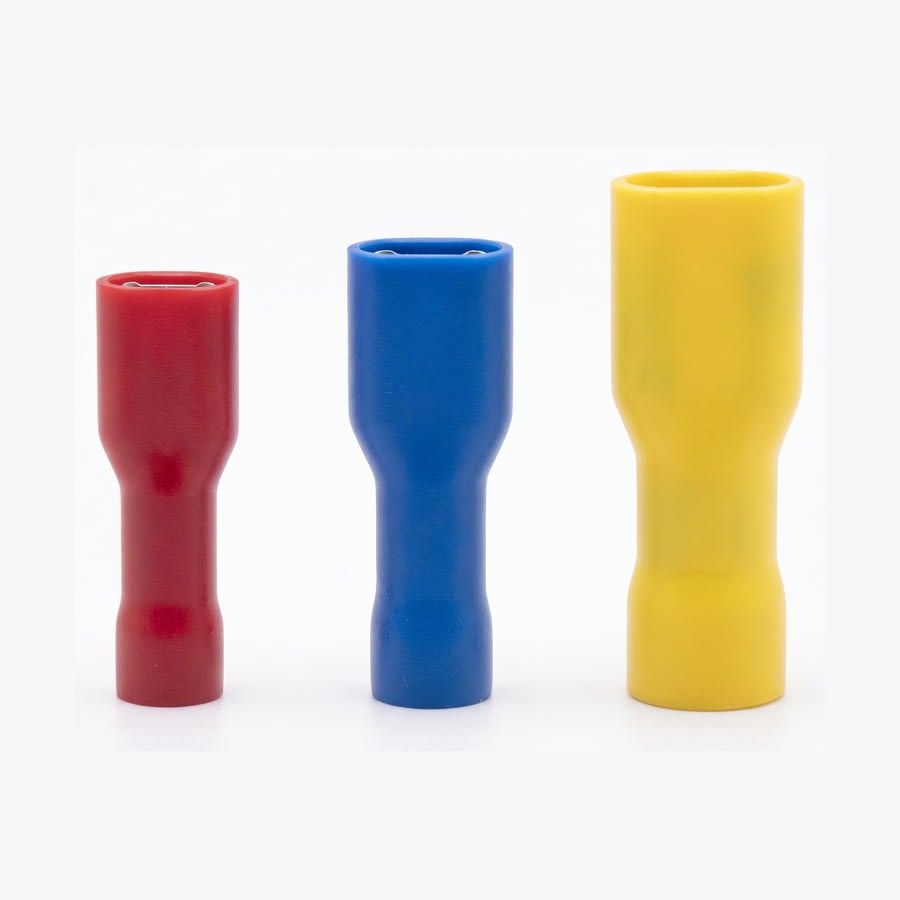

Available Sizes:
• FDFD1.25-250 (Red / 0.5-1.5mm²)
• FDFD2-250 (Blue / 1.5-2.5mm²)
• FDFD5.5-250 (Yellow / 4.0-6.0mm²)
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Fully Insulated Female Quick Disconnect (FDFD Series)
Terminal Material: Tinned Brass
Insulation Material: Fully Enclosed Color-Coded Nylon / PVC Housing
Mating Tab Size: 6.3mm (0.250 inch)
Wire Range: 0.5mm² to 6.0mm²
Maximum Voltage: 600V
Operating Temperature Range: -10°C to +75°C
Application: High-Density Control Enclosures, Machine Wiring, Automotive Electrical Systems, and Appliance Connections
