Description

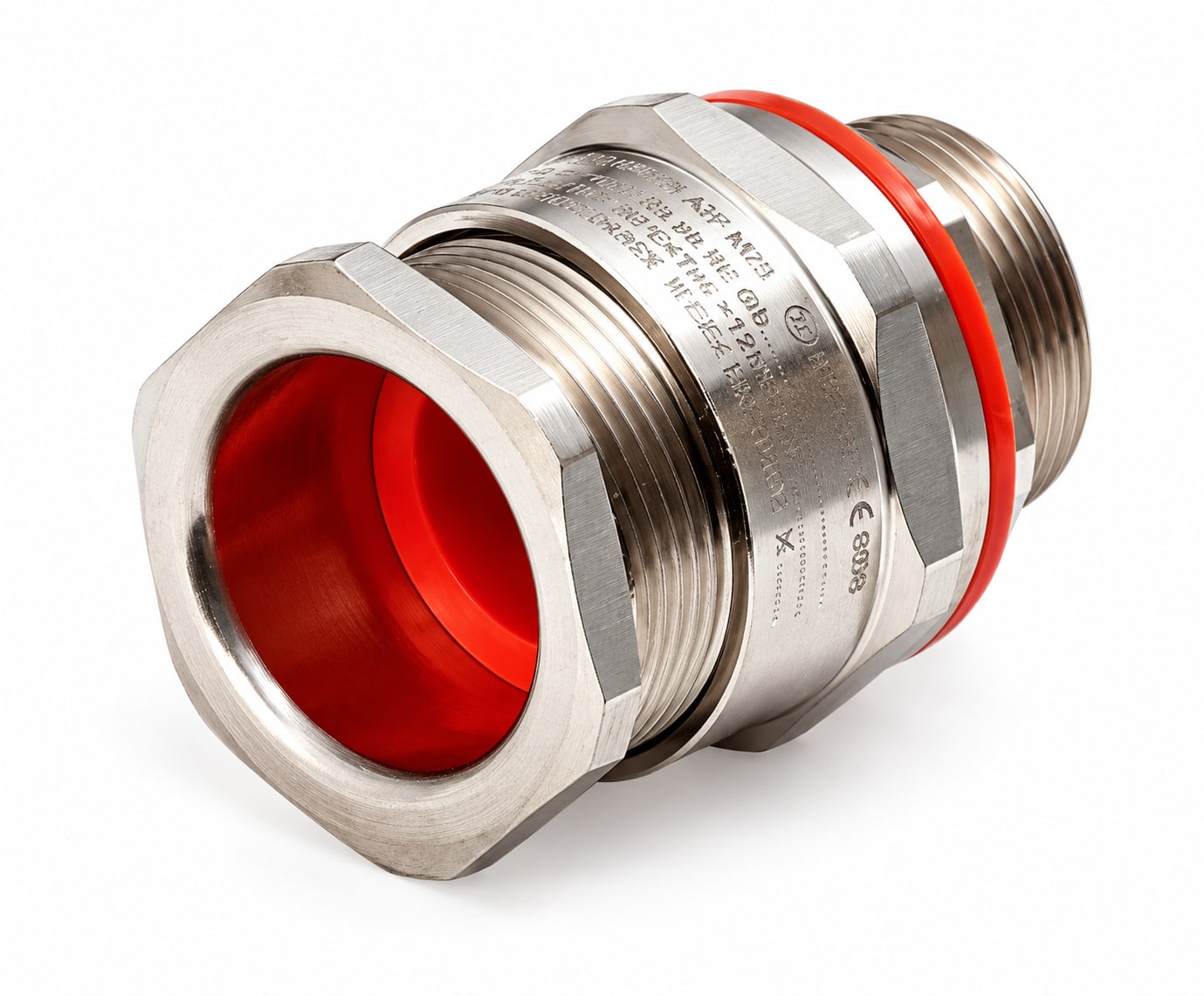

A2F Nickel Plated Brass Single Compression Explosionproof Cable Gland | CABTEK | Made in India
The CABTEK A2F Type Cable Gland in Nickel Plated Brass is an industrial explosionproof (Ex d flameproof) and increased safety (Ex e) single-compression termination fitting engineered for all types of unarmoured and flexible cables in hazardous indoor and outdoor environments. Precision-machined from high-grade CW614N/CW617N brass with electrolytic nickel plating, it provides enhanced resistance to atmospheric corrosion, chemical exposure, tarnishing, and marine salinity.
It forms a robust flameproof and weatherproof outer displacement seal directly onto the cable’s outer sheath, ensuring complete enclosure integrity without damaging the cable. Certified to ATEX and IECEx standards with LSOH silicone seals providing IP67 ingress protection against dust, severe water jets, and temporary submersion across wide operating temperatures (-60°C to +125°C).
Available Sizes:
• A2F 20S/16 BNP
• A2F 20S BNP
• A2F 20L BNP
• A2F 25 BNP
• A2F 32 BNP
• A2F 40 BNP
• A2F 50 BNP
Technical Specifications
Brand: CABTEK
Origin: Made in India
Gland Type: A2F Type (Explosionproof / Flameproof Single Compression)
Code of Protection: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Compliance Standards: EN/IEC 60079-0:2012+A11:2013, EN/IEC 60079-1:2014, EN/IEC 60079-7:2015, EN/IEC 60079-31:2014/2013
Certifications: ATEX (ITS16ATEX100935X), IECEx (IECEx ITS 16.0041X)
Material: Nickel Plated Brass (CW614N / CW617N / EN12165)
Seal Material: LSOH Silicone Seal & LSOH Nylon Washer
Cable Compatibility: Unarmoured and Flexible Cables
Ingress Protection: IP67 (as per EN 60529)
Operating Temperature: -60°C to +125°C
Thread Type: Standard Metric ISO
Application: Chemical Processing Plants, Offshore Skids, Marine Environments, Hazardous Area Control Panels, and Unarmoured Power/Control Cabling
