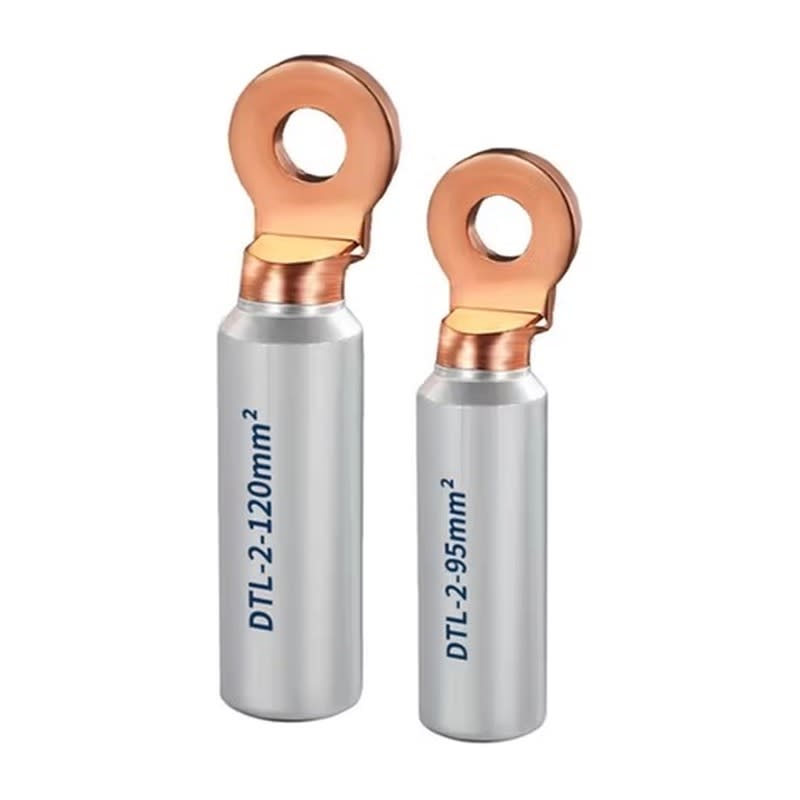

Bi-Metallic Cable Lugs DTL-2 (16mm² to 630mm²)

Description

Bi-Metallic Cable Lugs DTL-2 (16-12 to 630-16)

The Bi-Metallic Cable Lug (DTL-2 series) is engineered to establish secure, highly conductive, and transition-safe connections between aluminum cables and copper busbars or equipment contact surfaces. Manufactured using an advanced friction welding process, the electrolytic copper palm is molecularly bonded to the high-conductivity aluminum barrel, effectively eliminating galvanic corrosion and dissimilar metal reaction.

The aluminum barrel comes capped and pre-filled with an antioxidant contact compound to prevent aluminum oxide formation and lower contact resistance during compression. The solid copper palm provides a stable electrical interface compatible with standard switchgear, transformers, and distribution panels.

Available Sizes:
• 16-12
• 25-12
• 35-12
• 50-12
• 70-12
• 95-12
• 120-12
• 150-12
• 185-12
• 240-12
• 300-16
• 400-16
• 630-16

Technical Specifications

Brand: Generic

Series / Model: DTL-2

Product Type: Bi-Metallic Cable Lug (Friction Welded)

Conductor Material / Barrel: High-Conductivity Electrical-Grade Aluminum (Al 99.5%)

Palm Material: Electrolytic High-Conductivity Copper (Cu 99.9%)

Joint Technology: Friction Welded (Molecular Bond)

Internal Protection: Pre-filled with Neutral Antioxidant Jointing Grease

Application: Aluminum Cable Termination to Copper Busbars, Distribution Transformers, Switchgear, and Industrial Electrical Panels
