A2F Brass Single Compression Explosionproof Cable Gland (A2F 20S/16 – A2F 50L) | CABTEK | Made in India

Description

A2F Brass Single Compression Explosionproof Cable Gland (A2F 20S/16 – A2F 50L) | CABTEK | Made in India

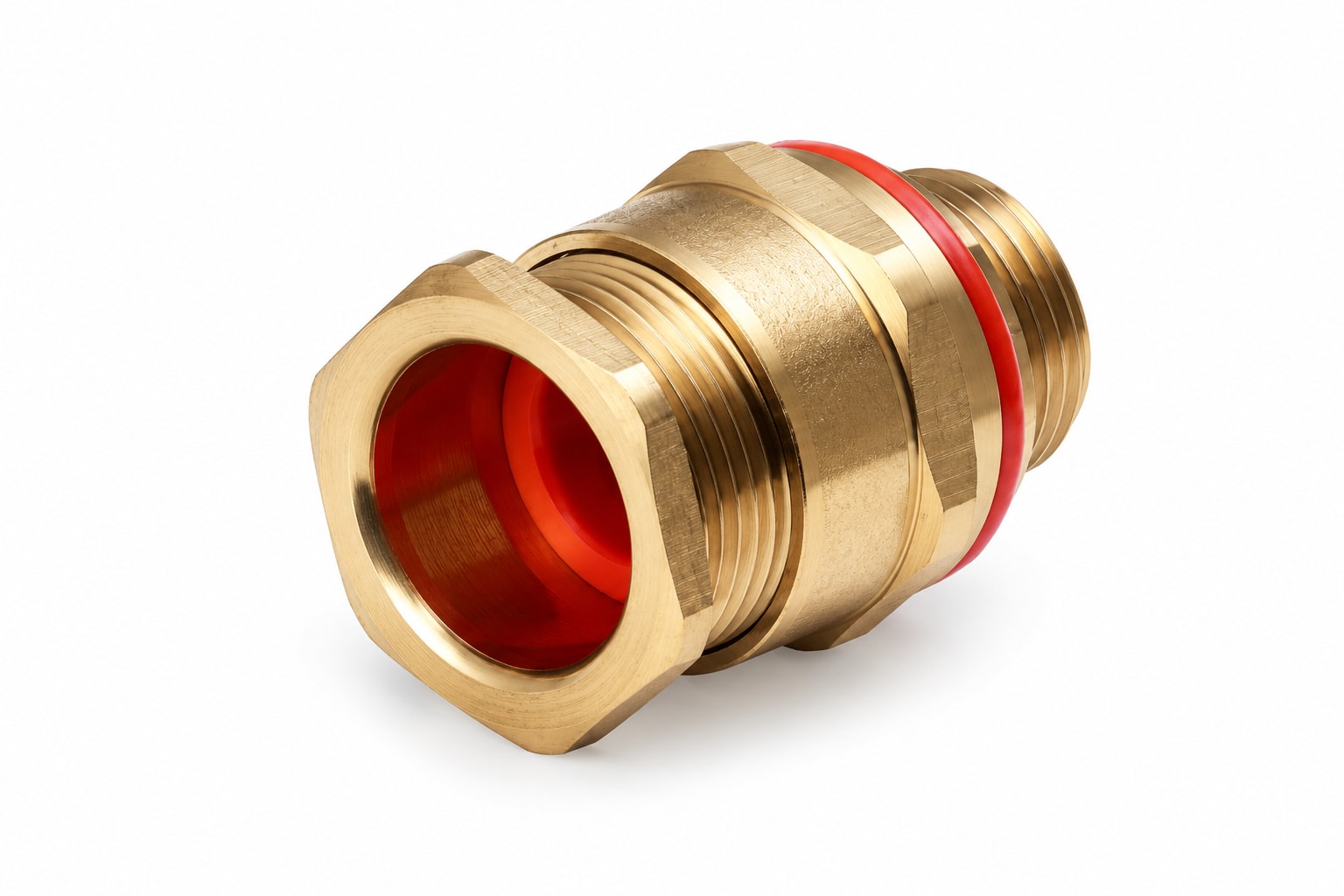

The CABTEK A2F Type Cable Gland is an industrial explosionproof (Ex d flameproof) and increased safety (Ex e) single-compression termination fitting engineered for all types of unarmoured and flexible cables in hazardous indoor and outdoor environments. Precision-machined from high-grade CW614N/CW617N brass, it forms a robust flameproof and weatherproof outer displacement seal directly onto the cable’s outer sheath, ensuring complete enclosure integrity without damaging the cable.

Certified to ATEX and IECEx standards with LSOH silicone seals providing IP67 ingress protection against dust, water jets, and temporary submersion across wide operating temperatures (-60°C to +125°C). Ideal for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas across chemical processing plants, marine and offshore skids, industrial control panels, junction boxes, and terminal equipment.

Available Sizes:
• A2F 20S/16
• A2F 20S
• A2F 20L
• A2F 25L
• A2F 32L
• A2F 40L
• A2F 50L

Technical Specifications

Brand: CABTEK

Origin: Made in India

Gland Type: A2F Type (Explosionproof / Flameproof Single Compression)

Code of Protection: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db

Compliance Standards: EN/IEC 60079-0:2012+A11:2013, EN/IEC 60079-1:2014, EN/IEC 60079-7:2015, EN/IEC 60079-31:2014/2013

Certifications: ATEX (ITS16ATEX100935X), IECEx (IECEx ITS 16.0041X)

Material: Extruded Brass CW614N / CW617N / EN12165

Seal Material: LSOH Silicone Seal & LSOH Nylon Washer

Cable Compatibility: Unarmoured and Flexible Cables

Ingress Protection: IP67 (as per EN 60529)

Operating Temperature: -60°C to +125°C

Thread Type: Standard Metric ISO

Application: Hazardous Area Control Panels, Chemical Refineries, Offshore Platforms, Junction Enclosures, and Unarmoured Power/Control Cabling
