Description
BE Series Auxiliary Contact Blocks for 22mm Switches | ZAIN

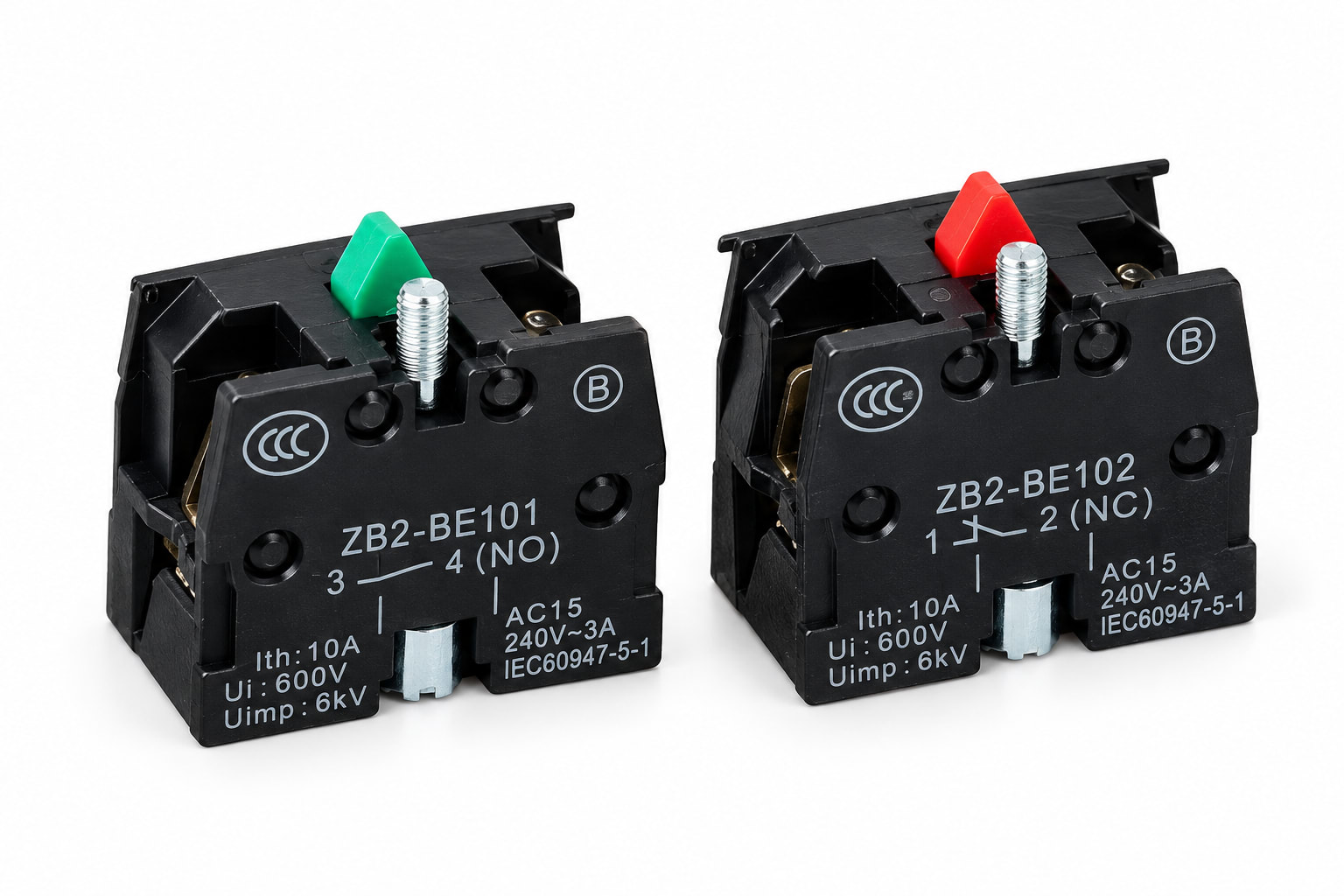

The ZAIN BE Series Contact Blocks are modular, clip-on electrical contact elements designed for use with standard 22mm push button switches, selector switches, and emergency stop operators (XB2 series). They allow easy expansion or replacement of switching circuits in motor controls, interlocking panels, and distribution switchgear.
Constructed with color-coded bodies for instant identification: Green for Normally Open (NO) circuits and Red for Normally Closed (NC) safety/stop circuits. Fitted with solid silver-alloy contacts and captive screw-clamp wire terminals with clear wiring numbers (1-2 for NC, 3-4 for NO).
Available Models:
• BE-101 Normally Open (1NO / Green)
• BE-102 Normally Closed (1NC / Red)
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Modular Auxiliary Contact Block
Mounting Type: Clip-On / Base Mount
Contact Form: 1NO (BE-101) / 1NC (BE-102)
Rated Insulation Voltage (Ui): 600V
Conventional Thermal Current (Ith): 10A
Operational Rating: AC-15 (240V 3A)
Terminal Type: Screw Clamp with Wire Clamping Washer
Application: XB2 Push Buttons, Selector Switches, Key Switches, Emergency Stop Buttons, and Industrial Control Panels
