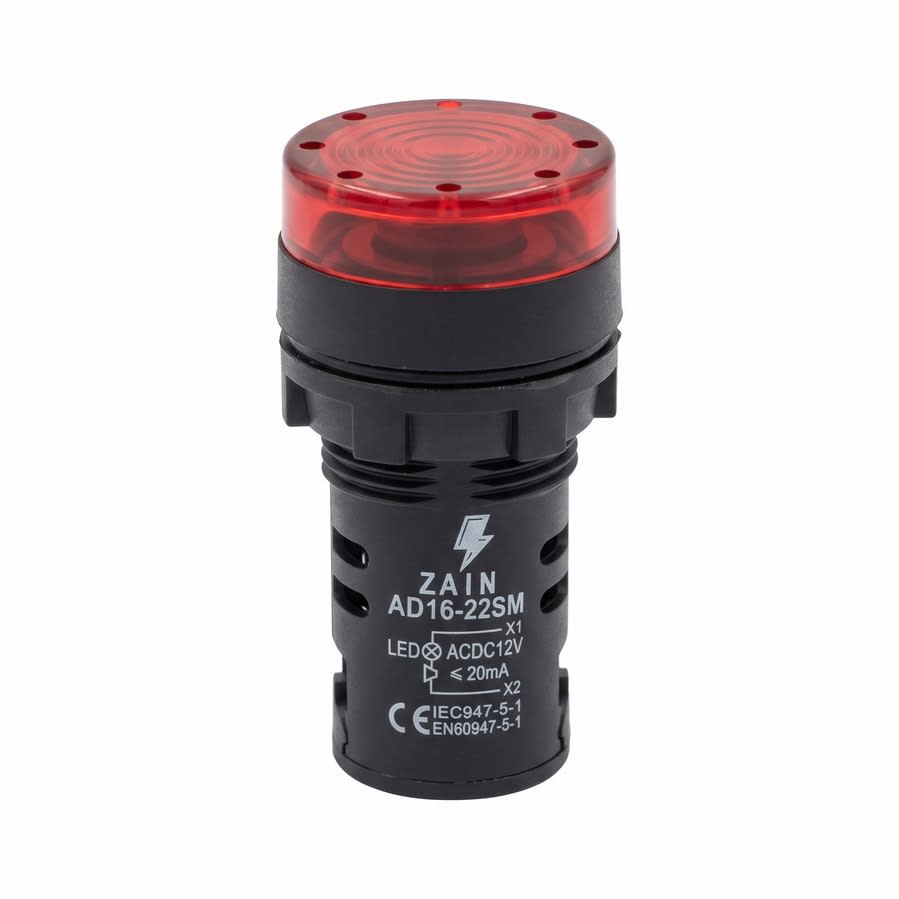

AD16-22SM Panel Indicator Flashing Buzzer (22mm) | ZAIN
The ZAIN AD16-22SM Panel Indicator Buzzer provides synchronized visual flashing and audible alarm signaling for electrical switchboards, machine operator stations, industrial control panels, and automation warning circuits. It combines an intermittent pulsing buzzer tone with a high-visibility flashing red LED lens to alert personnel immediately during equipment faults, cycle completions, or alert conditions.
Constructed with a standard 22mm threaded cylindrical body that installs securely into control panel doors using the included rear locking ring. Fitted with rear screw-clamp wire terminals (X1, X2) for straightforward wiring connection.
Available Voltages:
• 12V
• 24V
• 110V
• 220V
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Panel Indicator Flashing Buzzer / Sound & Light Alarm
Model Series: AD16-22SM
Mounting Hole Diameter: 22mm
Operating Voltages: 12V AC/DC, 24V AC/DC, 110V AC/DC, 220V AC/DC
Acoustic Alarm: Intermittent Beeping Sound
Sound Level: Approx. 80 dB at 10cm
Light Source: Red Flashing LED
Current Consumption: <= 20mA
Terminal Connection: Screw Clamp Terminals (X1 / X2)
Standards Compliance: IEC 947-5-1, EN 60947-5-1, CE Certified
Application: Industrial Control Panels, Automation Machinery, Alarm Stations, Power Distribution Boards, and Equipment Warning Systems
