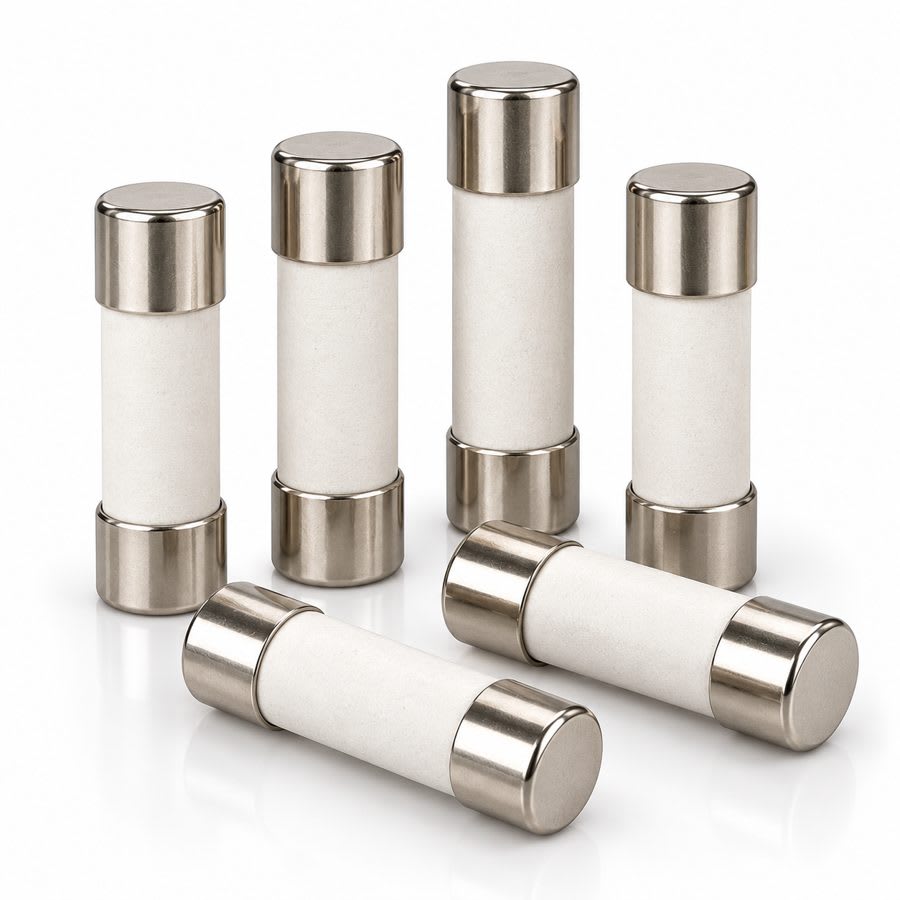

10x38mm Cylindrical Ceramic Fuse Links (1A to 32A / 500V) | ZAIN
The ZAIN 10x38mm Cylindrical Ceramic Fuse Links (gG general application cartridges) provide standard overload and short-circuit protection for electrical installations, control circuits, transformers, and industrial distribution boards. Compatible with standard 10x38mm modular DIN rail fuse carriers and disconnect switches (such as RT18-32 and RT14-32 series).
Constructed with a ceramic tube body filled with treated silica sand to extinguish arcs effectively under short-circuit conditions, fitted with copper end-caps for low contact resistance.
Available Current Ratings:
• 1A
• 2A
• 3A
• 4A
• 5A
• 6A
• 8A
• 10A
• 16A
• 20A
• 25A
• 32A
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Cylindrical Ceramic Fuse Link / Fuse Cartridge
Size: 10 x 38 mm
Rated Voltage: 500VAC
Rated Current: 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 16A, 20A, 25A, 32A
Body Material: Ceramic Tube with Nickel/Tin-Plated Copper End Caps
Standards Compliance: IEC 60269
Application: Modular Fuse Carriers (RT18-32), Control Panels, Motor Feeders, Distribution Boards, and Power Supplies
