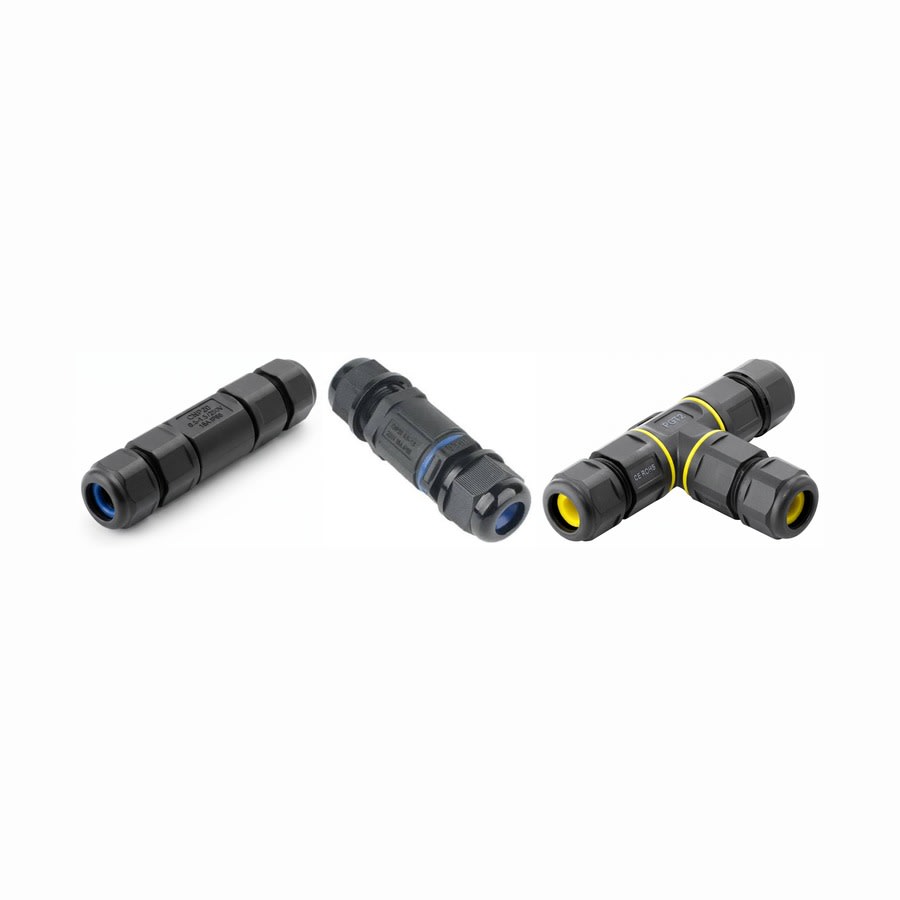

Industrial Waterproof Cable Junction Connectors | ZAIN
The ZAIN Industrial Waterproof Cable Connectors provide dependable sealed electrical connections for outdoor streetlights, garden landscape lighting, submerged pump wiring, building facade power, and industrial equipment leads. Designed to join or branch electrical cables while sealing against moisture, dust, and environmental exposure.
Constructed from impact-resistant engineering plastic equipped with threaded compression gland nuts and silicone sealing rings at each cable entry point. Fitted with internal brass screw-clamp terminal blocks for fast and secure conductor termination.
Available Models & Configurations:
Available Models:
• CNP20-2P (Straight-2pin)
• CNP20-3P (Straight-4pin)
• CNP20-4P (Straight-4pin)
• GCT3-2P (T type-2pin)
• GCT3-3P (T type-3pin)
• PGT2-4P (T type-4pin)
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Waterproof Cable Joint Connector / Junction Box Jointer
Series: CNP20 (Inline) & GCT3 / PGT2 (T-Type)
Housing Material: High-Strength Polyamide (PA66)
Sealing Gaskets: Silicone Rubber O-Rings
Pole Configurations: 2-Pole, 3-Pole, 4-Pole
Terminals: Brass Screw-Clamp Terminals
Rated Voltage / Current: Up to 450V / 24A
Operating Temperature Range: -40°C to +105°C
Application: Outdoor Garden Lighting, Street Lighting, Submersible Well Pumps, Architectural Illumination, and Industrial Cable Splicing
