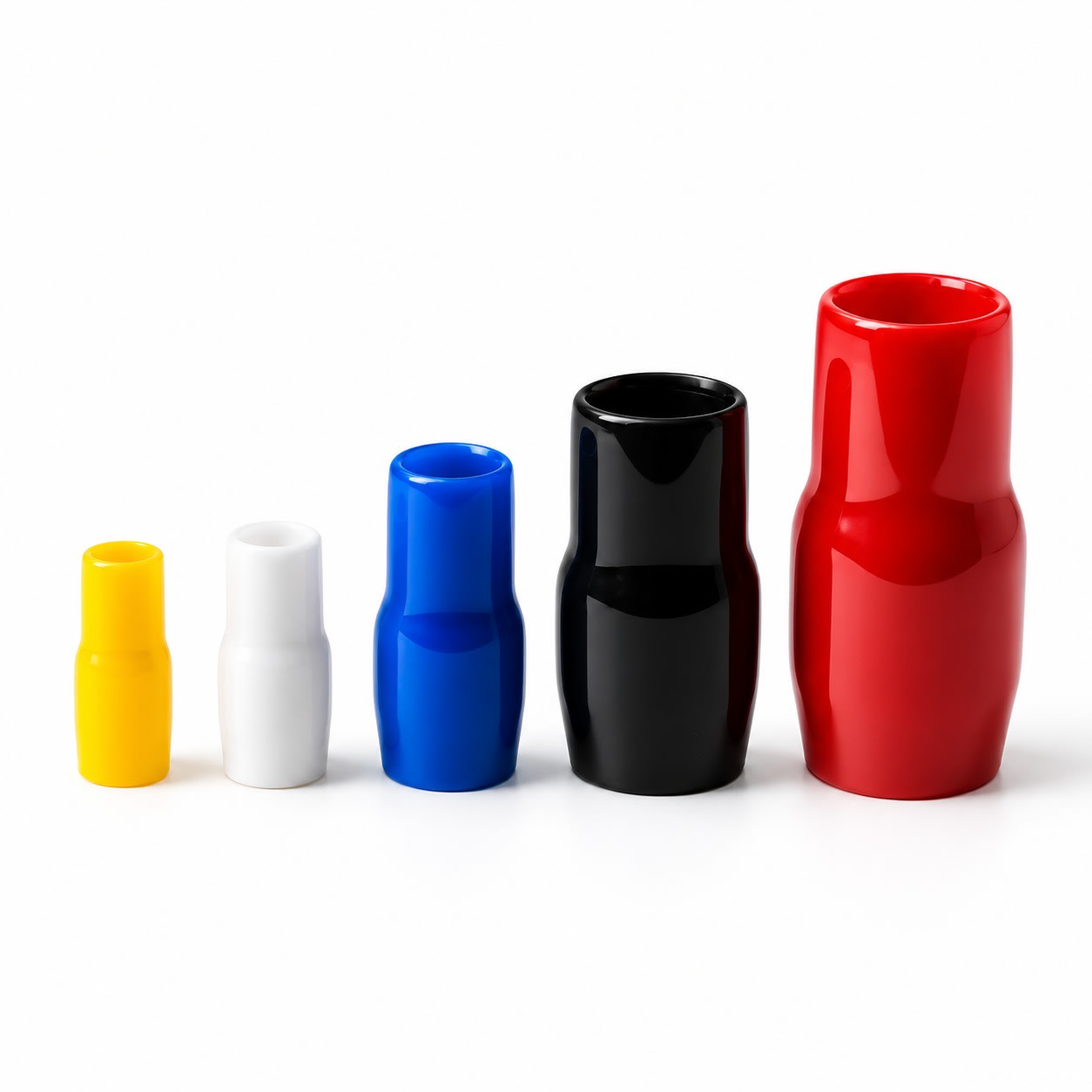

Vinyl Soft Sleeves (V-Series Cable Lug Insulation Caps) | LOYED | Made in Taiwan
The LOYED V-Series Vinyl Soft Sleeves (Dip-Molded PVC Lug Covers) are designed to provide electrical insulation, physical protection, and clear color-coded phase identification over crimped cable terminals and lugs. Widely specified in power distribution boards, switchgear panels, transformer connections, motor terminations, and busbar feeds, they slip smoothly over cable ends to prevent accidental contact, flashover, and dust contamination.
Manufactured from high-grade, flexible, and flame-retardant polyvinyl chloride (PVC). Their high elasticity ensures a tight, snug fit over terminal barrels without cracking, splitting, or hardening across wide temperature ranges, providing long-term insulation rated up to 600V.
Available Sizes:
• V3.5 RED
• V3.5 YELLOW
• V3.5 BLUE
• V3.5 BLACK
• V5.5 RED
• V5.5 YELLOW
• V5.5 BLUE
• V5.5 BLACK
• V8 RED
• V8 YELLOW
• V8 BLUE
• V8 BLACK
• V14 RED
• V14 YELLOW
• V14 BLUE
• V14 BLACK
• V22 RED
• V22 YELLOW
• V22 BLUE
• V22 BLACK
• V38 RED
• V38 YELLOW
• V38 BLUE
• V38 BLACK
• V60 RED
• V60 YELLOW
• V60 BLUE
• V60 BLACK
• V80 RED
• V80 YELLOW
• V80 BLUE
• V80 BLACK
• V100 RED
• V100 YELLOW
• V100 BLUE
• V100 BLACK
• V125 RED
• V125 YELLOW
• V125 BLUE
• V125 BLACK
• V150 RED
• V150 YELLOW
• V150 BLUE
• V150 BLACK
• V200
• V250
• V325
Technical Specifications
Brand: LOYED
Origin: Made in Taiwan
Product Type: Flexible Vinyl Soft Sleeve / Cable Lug Insulation Cap
Applicable Cable Range: 3.5mm² to 325mm²
Material: Soft Flame-Retardant Polyvinyl Chloride (PVC)
Available Colors: Red, Yellow, Blue, Black (Phase Identification)
Voltage Rating: 600V Max
Operating Temperature Range: -20°C to +75°C
Dielectric Strength: Over 15 kV/mm
Standards Compliance: RoHS Compliant
Application: Switchboards, Control Panels, Power Distribution Cabinets, Transformer Bushings, and Motor Junction Terminations
