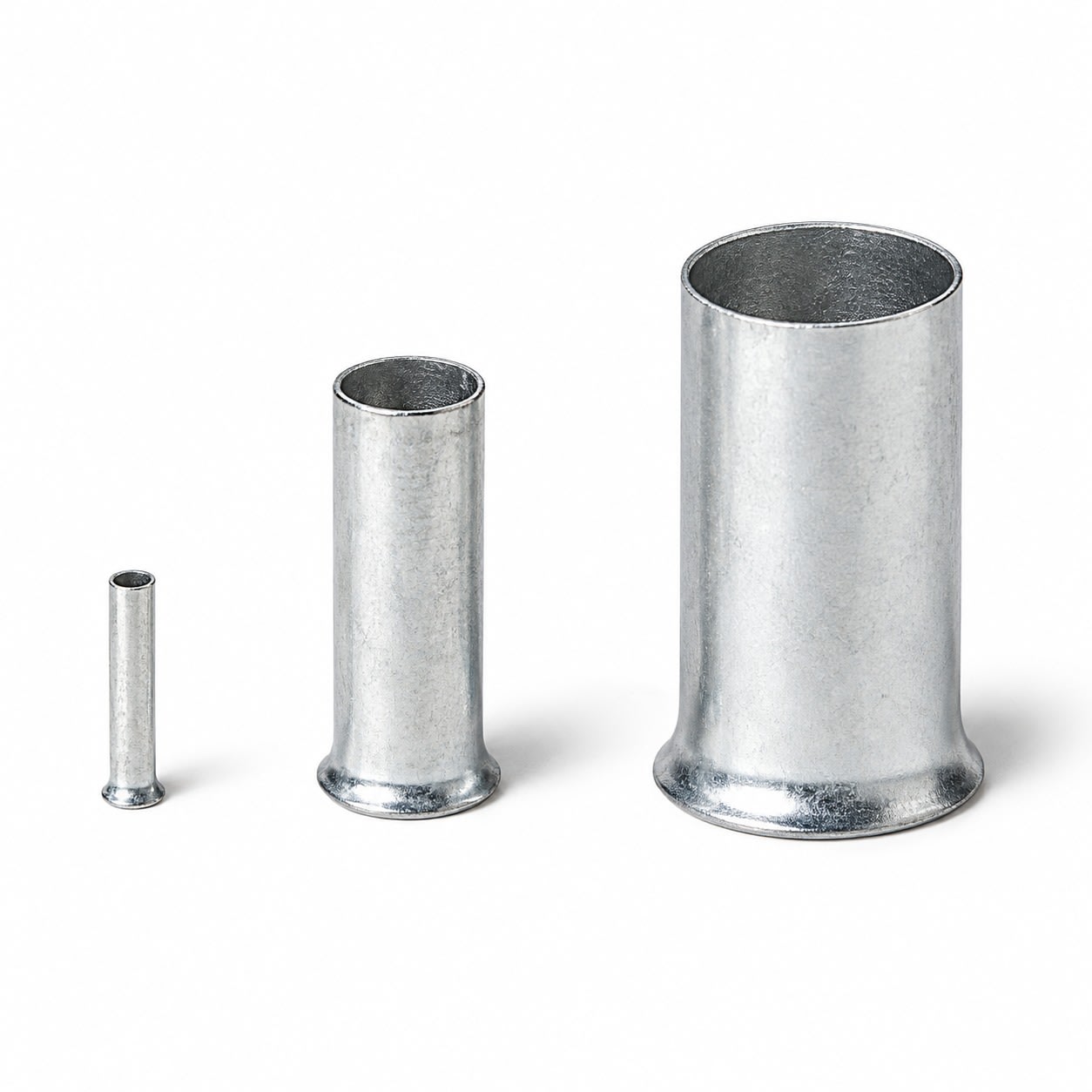

Un-Insulated Copper Cord End Sleeve (0.50mm² to 150mm²) | LOYED | Made in Taiwan
The LOYED Un-Insulated Cord End Sleeves (Non-Insulated Bootlace Ferrules) provide high-integrity, vibration-proof electrical terminations for flexible multi-strand copper cables where space constraints prevent the use of standard insulated plastic collars. By consolidating loose, stranded conductors into a clean cylindrical tube, they eliminate strand fraying, splaying, and shearing under screw-clamp or spring-loaded terminals, maximizing contact surface area and preventing hot spots.
Precision-drawn from high-conductivity, seamless electrolytic copper (Cu-ETP 99.9%) and electro-tin plated to deliver superior corrosion resistance, long-term oxidation protection, and low contact resistance. Manufactured in accordance with DIN 46228 Part 1, they are ideal for high-density wiring inside control cabinets, switchgear panels, terminal enclosures, and power distribution systems.
Available Sizes:
• LN-005008 0.50MM
• LN-007508 0.75MM
• LN-010008 1MM
• LN-015007 1.5MM
• LN-025007 2.5MM
• LN-040009 4MM
• LN-060012 6MM
• LN-100012 10MM
• LN-160012 16MM
• LN-250016 25MM
• LN-350018 35MM
• LN-500018 50MM
• LN-700022 70MM
• LN-950025 95MM
• LN-120030 120MM
• LN-150032 150MM
Technical Specifications
Brand: LOYED
Origin: Made in Taiwan
Product Type: Un-Insulated Cord End Sleeve / Non-Insulated Wire Ferrule
Material: Seamless Electrolytic Copper (Cu-ETP 99.9%)
Plating: Bright Electro-Tin Plated (Corrosion & Tarnish Resistant)
Standard & Compliance: DIN 46228 Part 1, RoHS Compliant
Temperature Rating: Up to +125°C
Voltage Rating: 600V Max
Application: High-Density Control Panels, DIN Rail Terminal Blocks, Switchgear Enclosures, Circuit Breakers, and PLC Wiring
