Screw-On Wire Nut Connectors (E-1 to E-5) | Twist-On Wire Connectors | LOYED | Made in Taiwan

Description

Screw-On Wire Nut Connectors (E-Series) | LOYED | Made in Taiwan

The LOYED E-Series Screw-On Wire Nuts (Twist-On Wire Connectors) offer quick, tool-free, and re-enterable connections for joining solid and stranded copper wires in electrical wiring systems. Engineered with a live-action, zinc-plated square-wire internal spring, they thread firmly onto conductors, pulling wires tightly together and creating a low-resistance, vibration-proof mechanical bond without requiring pre-twisting.

Housed in a rugged, flame-retardant thermoplastic shell with deep ribbed grooves for positive finger grip and effortless hand torque. The deep skirt design extends beyond the live wire ends, preventing conductor exposure and preventing accidental contact or flashover in electrical boxes.

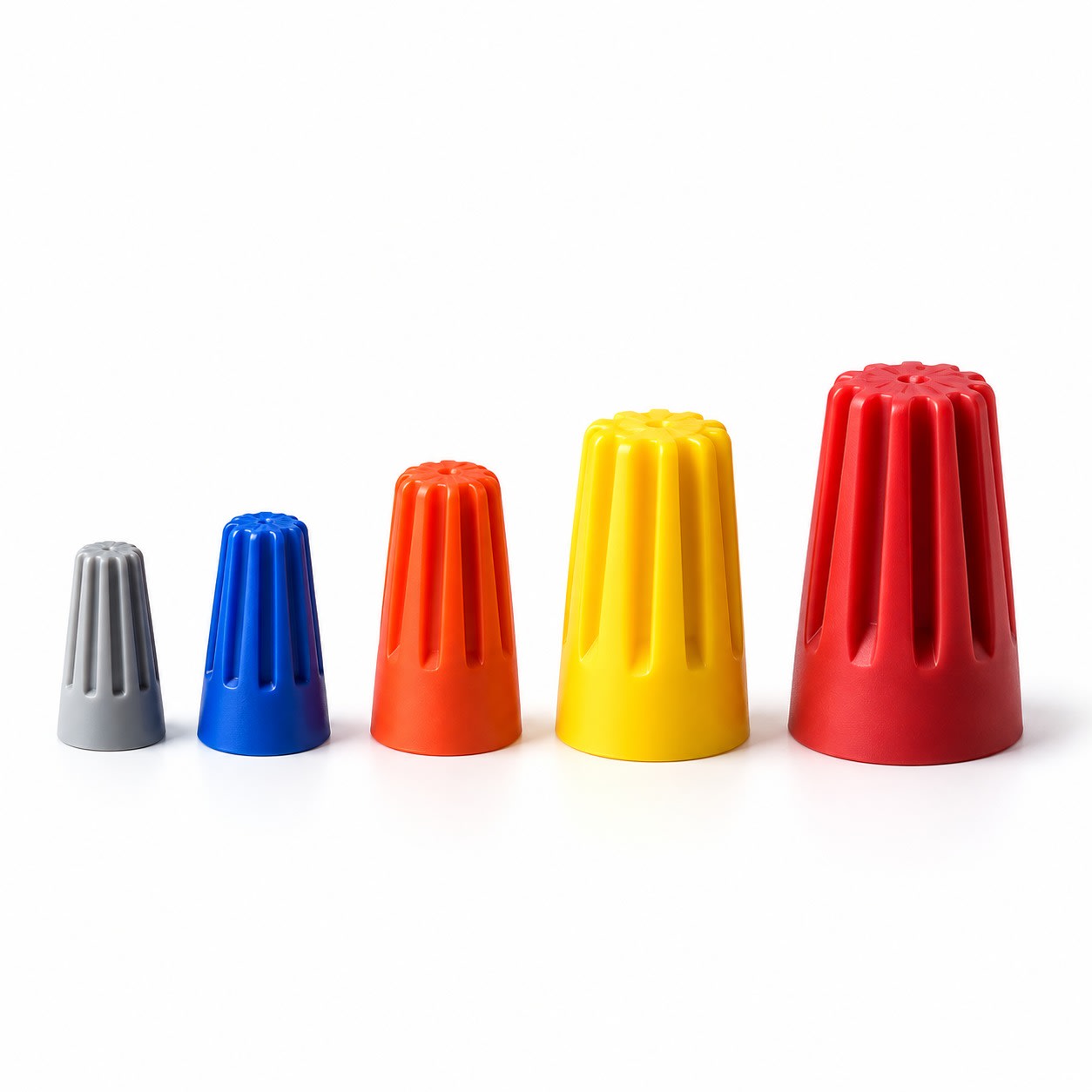

Available Sizes:
• E-1 Grey
• E-2 Blue
• E-3 Orange
• E-4 Yellow
• E-5 Red

Technical Specifications

Brand: LOYED

Origin: Made in Taiwan

Product Type: Twist-On Wire Connector / Screw-On Wire Nut

Spring Material: Corrosion-Resistant Zinc-Plated Tempered Carbon Steel

Shell Material: High-Dielectric Flame-Retardant Thermoplastic (UL 94V-2)

Voltage Rating: 300V (E-1, E-2) / 600V Max (E-3, E-4, E-5) (1000V in fixtures)

Temperature Rating: Up to +105°C

Standards Compliance: UL Listed, CSA Certified, RoHS Compliant

Application: Residential & Commercial Junction Boxes, Branch Circuits, Lighting Fixtures, and Control Panels
