Description
Nylon Closed End Crimp Wire Connectors CE Series | ZAIN
The ZAIN CE Series Closed End Crimp Wire Connectors (Crimp Caps) provide standard dead-end insulation for pigtail and parallel wire junctions in lighting fixtures, junction boxes, small appliances, and automotive circuits. Designed to join two or more stripped wire ends permanently inside a single insulated crimp sleeve.
Molded from translucent nylon (polyamide) with an internal seamless tin-plated metal tube. Wires are twisted together, inserted into the tube, and crimped using a standard terminal crimping tool for vibration-resistant holding.

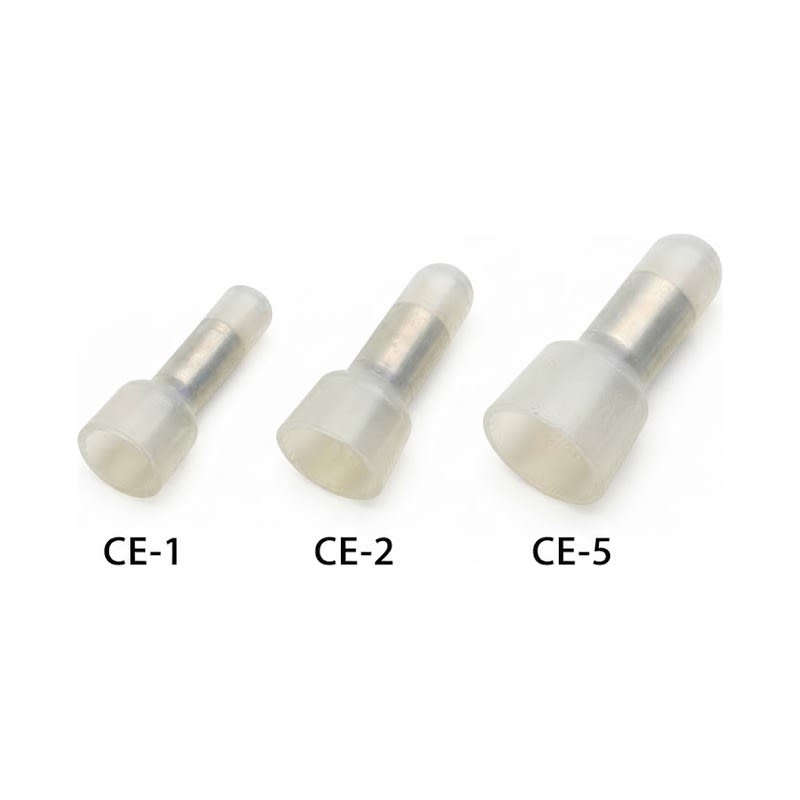

Available Sizes:
• CE-1 (0.5-1.5mm²)
• CE-2 (1.5-2.5mm²)
• CE-5 (4.0-6.0mm²)
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Closed End Crimp Wire Connector / Crimp Cap
Series: CE Series
Internal Sleeve Material: Tin-Plated Aluminum / Copper
Insulation Cap Material: Polyamide Nylon 66 (Translucent Natural)
Rated Voltage: 300V / 600V
Operating Temperature Range: -20°C to +105°C
Application: Luminaire Pigtail Joints, Home Appliances, Automotive Looms, Ceiling Fan Wiring, and Electrical Junction Boxes
