Description

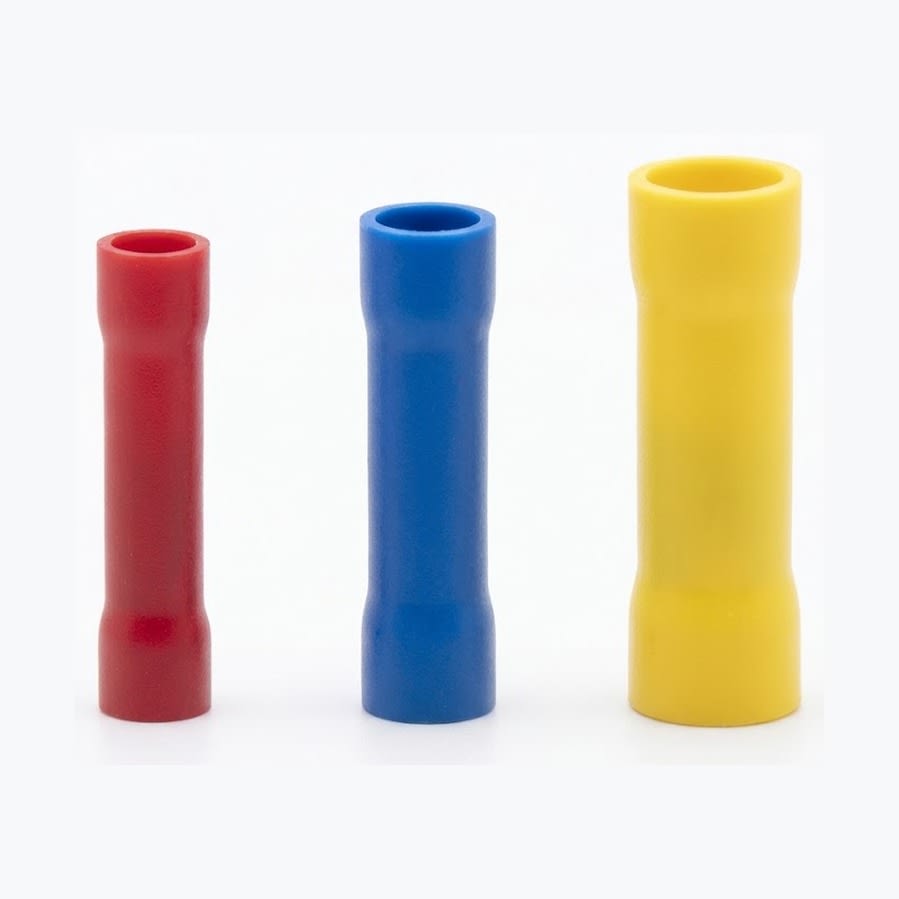

Insulated Butt Splice Wire Connectors BV Series | ZAIN
The ZAIN BV Series Insulated Butt Connectors provide standard inline wire splicing and jointing for electrical wiring, control panels, automotive harnesses, and equipment repairs. Designed with an internal wire-stop barrier at the center of the copper barrel to ensure equal conductor insertion depth from both sides.
Manufactured from tinned electrolytic copper for electrical conductivity and oxidation protection, fitted with a color-coded PVC sleeve. Crimped from both ends using standard ratchet wire crimpers to form a permanent mechanical and electrical joint.
Available Sizes:
• BV1.25 (0.5-1.5mm²) Red
• BV2 (1.5-2.5mm²) Blue
• BV5.5 (4.0-6.0mm²) Yellow
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Insulated Butt Splice Crimp Connector
Series: BV Series
Barrel Material: Electrolytic Copper (Tin-Plated)
Insulation Material: Color-Coded PVC
Rated Voltage: 600V
Operating Temperature Range: -10°C to +75°C
Application: Inline Wire Splicing, Automotive Wiring, Control Cabinets, and Building Maintenance
