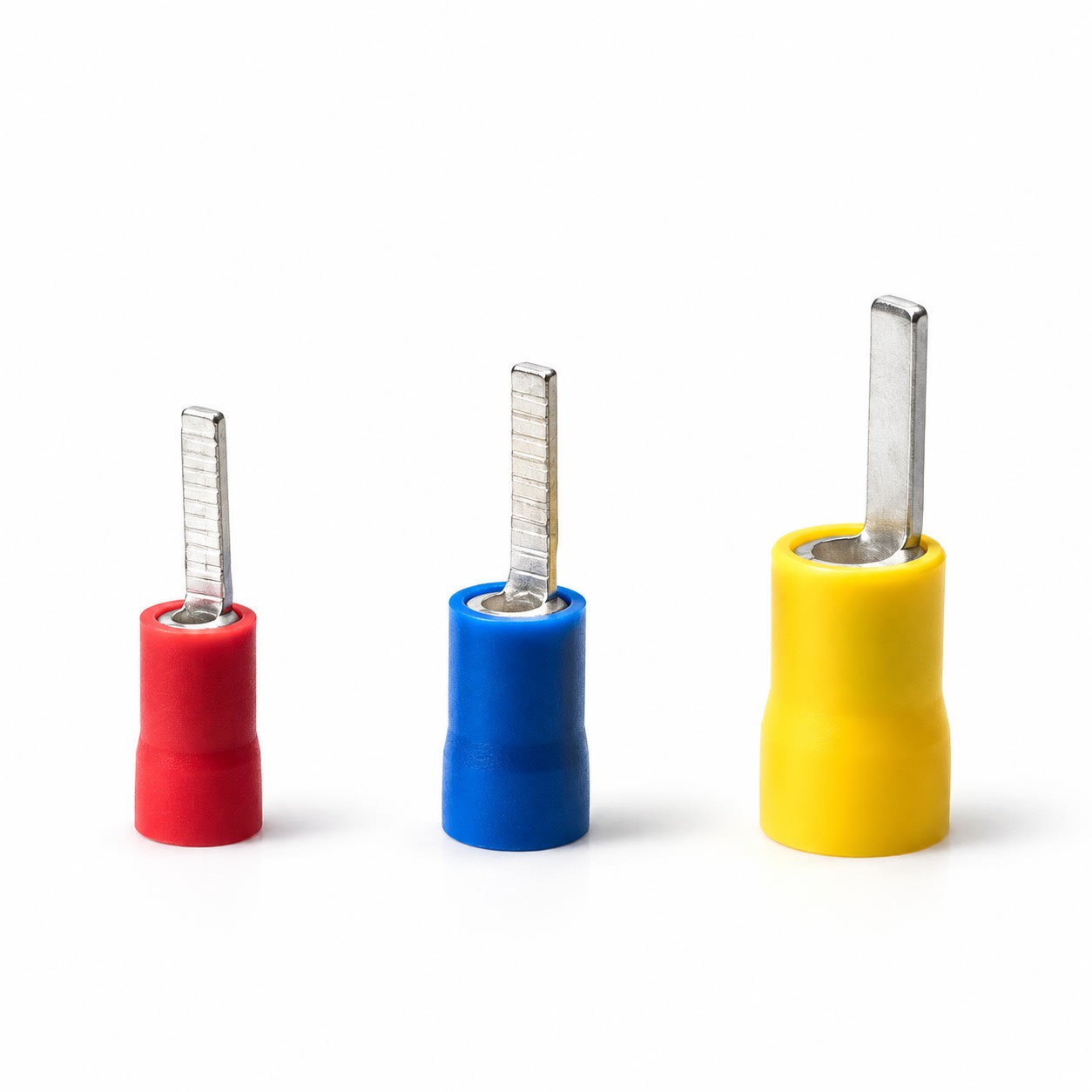

Insulated Blade Terminals (0.5mm² to 6.0mm² / 9mm to 18mm Blade) | LOYED | Made in Taiwan
The LOYED Insulated Blade Terminals (Flat Pin Tongue Crimp Lugs) are specifically engineered for secure, damage-free termination into screw-down clamp connections, European-style terminal strips, contactors, and control relays. Unlike round pins or un-terminated stranded wires, the wide flat blade contact distributes clamping screw pressure evenly across the conductor, eliminating wire splaying, strand cutting, and localized hot spots.
Precision-stamped from high-purity electrolytic copper (Cu-ETP 99.9%) and electro-tin plated to deliver high electrical conductivity, low contact resistance, and long-lasting protection against oxidation and chemical corrosion. Fitted with an easy-entry flared vinyl (PVC) insulation sleeve that guides stranded copper wires smoothly into the crimp barrel without strand damage or turnback, rated for continuous operation up to 600V.
Available Sizes:
• VBT1-10 10mm Blade (0.5-1.5mm² / Red)
• VBT1-13 13mm Blade (0.5-1.5mm² / Red)
• VBT1-14 14mm Blade (0.5-1.5mm² / Red)
• VBT1-18 18mm Blade (0.5-1.5mm² / Red)
• VBT2-9 9mm Blade (1.5-2.5mm² / Blue)
• VBT2-10 10mm Blade (1.5-2.5mm² / Blue)
• VBT2-13 13mm Blade (1.5-2.5mm² / Blue)
• VBT2-18 18mm Blade (1.5-2.5mm² / Blue)
• VBT5-10 10mm Blade (4.0-6.0mm² / Yellow)
• VBT5-18 18mm Blade (4.0-6.0mm² / Yellow)
Technical Specifications
Brand: LOYED
Origin: Made in Taiwan
Product Type: Insulated Blade Terminal / Flat Pin Crimp Lug
Conductor Range: 0.5mm² to 6.0mm² (22 to 10 AWG)
Blade Lengths: 9mm, 10mm, 13mm, 14mm, 18mm
Terminal Body Material: High-Conductivity Electrolytic Copper (Cu-ETP 99.9%)
Surface Finish: Bright Electro-Tin Plated (Corrosion & Tarnish Resistant)
Insulation Material: Flame Retardant Vinyl (PVC) with Flared Easy-Entry Funnel
Voltage Rating: 600V Max
Operating Temperature Range: -10°C to +75°C (105°C max intermittent)
Industry Standards: UL Listed, CSA Certified, RoHS Compliant
Application: DIN Rail Terminal Blocks, Barrier Terminal Strips, Circuit Breakers, Industrial Control Panels, and Automation Switchgear
