Heat Shrinkable Ring Terminals RSRV Series | ZAIN
The ZAIN RSRV Series Heat Shrinkable Ring Terminals provide environmental sealing and strain relief for ring stud connections in automotive, marine, outdoor lighting, and industrial machinery wiring. The internal hot-melt adhesive melts and flows when heated to seal against moisture and dust.
Manufactured with a tinned copper brazed-seam ring barrel enclosed in semi-rigid translucent dual-wall polyolefin heat shrink tubing. Once crimped and heated, it provides electrical insulation and mechanical pull-out strength.

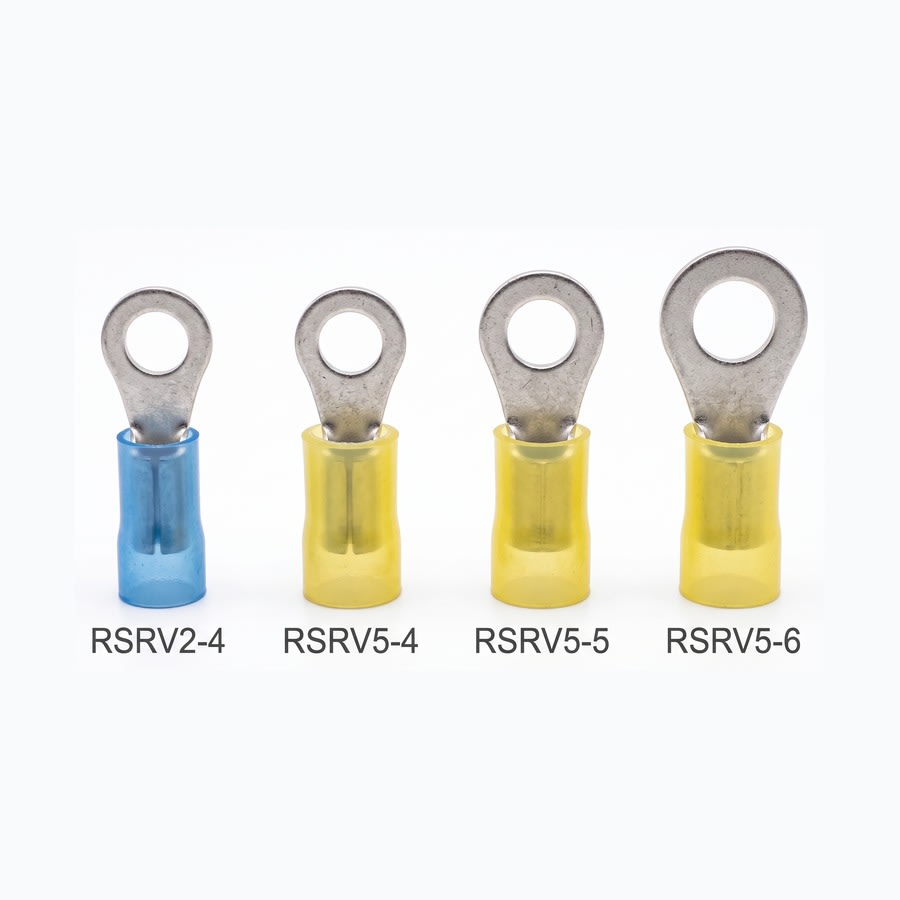

Available Sizes:
• RSRV2-4 (M4) Blue
• RSRV5-4 (M4) Yellow
• RSRV5-5 (M5) Yellow
• RSRV5-6 (M6) Yellow
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Heat Shrinkable Crimp Ring Terminal
Series: RSRV Series
Conductor Material: Tinned Electrolytic Copper
Insulation: Dual-Wall Polyolefin with Hot-Melt Adhesive Inner Liner
Stud Sizes: M4, M5, M6
Shrink Temperature: 120°C – 150°C
Operating Temperature Range: -55°C to +125°C
Application: Automotive Wiring, Marine Switchboards, Outdoor Lighting Junctions, Trailer Wiring, and Heavy Machinery
