Heat Shrinkable Fork Terminals RSSV Series | ZAIN
The ZAIN RSSV Series Heat Shrinkable Fork Terminals combine the fast mounting convenience of an open spade fork with the environmental sealing of adhesive-lined heat shrink tubing. Suitable for terminal blocks, barrier strips, and relay sockets in harsh, vibrating, or humid working environments.
Constructed from tinned electrolytic copper with an adhesive-lined polyolefin sleeve. The hot-melt glue bonds tightly to the cable insulation when heated, relieving strain and sealing out dirt and moisture.

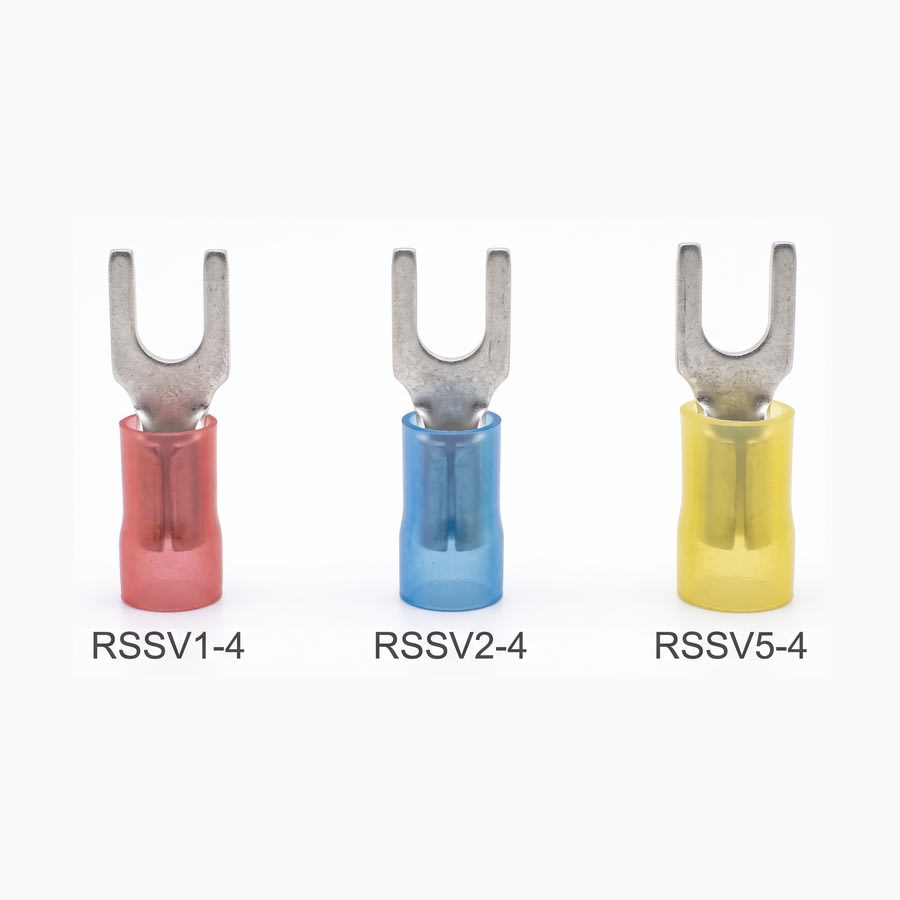

Available Sizes:
• RSSV1-4 (M4) Red
• RSSV2-4 (M4) Blue
• RSSV5-4 (M4) Yellow
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Heat Shrinkable Crimp Fork / Spade Terminal
Series: RSSV Series
Conductor Material: Tinned Electrolytic Copper
Insulation: Dual-Wall Polyolefin with Hot-Melt Adhesive Liner
Stud Fit: M4 Screw
Shrink Temperature: 120°C – 150°C
Operating Temperature Range: -55°C to +125°C
Application: Terminal Barrier Strips, Automotive Control Wiring, Marine Panels, and Outdoor Equipment Enclosures
