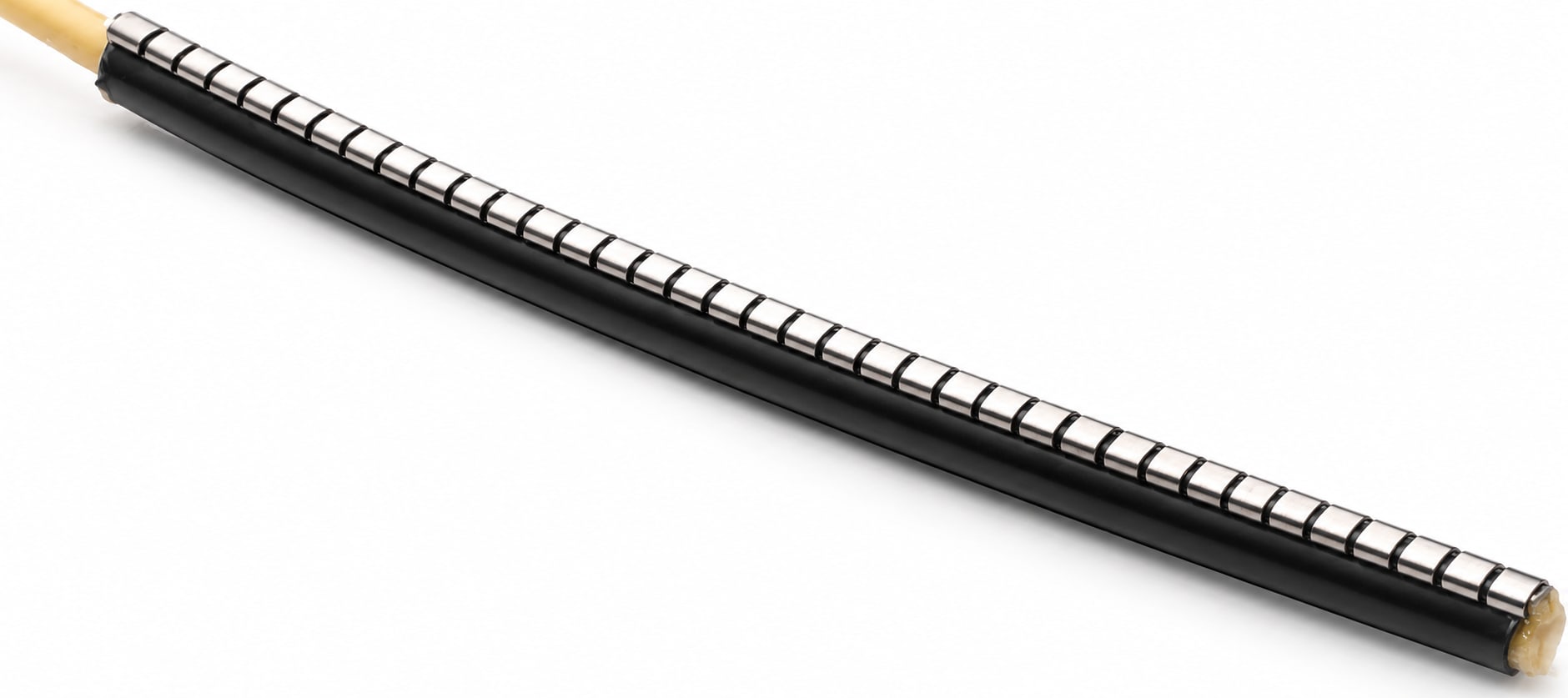

G-Apex UCSM Heat Shrink Wraparound Cable Repair Sleeves | Adhesive Lined | Made in Taiwan
The UCSM series wraparound cable repair sleeve is engineered for fast, reliable sealing and insulation repair of damaged power cable outer jackets without interrupting service or cutting existing cable joints. Manufactured in Taiwan from cross-linked polyolefin, the sleeve is coated internally with a specialized hot-melt adhesive that flows upon heating to create a durable, moisture-proof, and watertight seal.
Featuring a high 3:1 shrink ratio and supplied with a stainless steel closure channel, it installs quickly around irregular cable profiles, offering rugged abrasion resistance, UV protection, and long-term environmental durability for low and medium-voltage power cable networks.
Available Sizes:
• 42mm
• 65mm
• 85mm
• 108mm
• 136mm
• 160mm
Technical Specifications
Brand: G-Apex
Series: UCSM Wraparound Repair Sleeve
Origin: Made in Taiwan
Material: Heavy-Duty Cross-Linked Polyolefin
Internal Coating: High-Performance Hot-Melt Adhesive
Closure System: Stainless Steel Channel
Shrink Ratio: 3:1
Available Sizes: 42mm, 65mm, 85mm, 108mm, 136mm, 160mm
Features: Waterproof, UV Resistant, Abrasion Resistant, Corrosion Proof
Application: Cable Outer Sheath Repair, Re-Jacketing Power Cables, Splicing Retrofit, Underground Cable Maintenance, and Telecommunication Lines
