Description

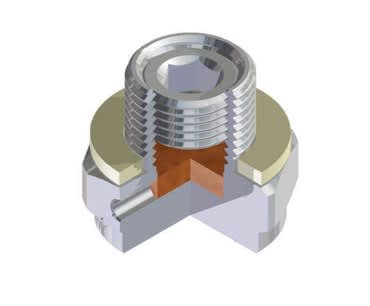

CABTEK Nickel Plated Brass Breather Drain Plug (M20, M25, M32) | Made in India
The CABTEK Nickel Plated Brass Breather Drain Plug is an industrial-grade hazardous and safe area accessory designed to prevent moisture buildup inside electrical enclosures, junction boxes, switchgear panels, and terminal housings. It provides continuous drainage of internal condensation caused by fluctuating ambient temperatures while equalizing pressure and preventing moisture or dust ingress from the surrounding environment.
Precision-machined from solid high-grade extruded brass (CW614N / CZ121) and electro-plated with premium nickel (BNP), it offers superior corrosion and tarnish resistance in high-humidity, marine, and corrosive atmospheres. Fitted with an internal porous breathing element, it maintains Ex e (Increased Safety) and Ex tb (Dust Ignition Protection) integrity while achieving an IP66 ingress protection rating.
Available Sizes:
• M20
• M25
• M32
M20 (M20 x 1.5)
M25 (M25 x 1.5)
M32 (M32 x 1.5)
Technical Specifications
Brand: CABTEK
Origin: Made in India
Product Type: Breather Drain Plug (Condensation Drain & Pressure Equalizer)
Material: Extruded Brass CW614N / CZ121
Surface Finish: High-Integrity Nickel Plated Brass (BNP)
Internal Filter Element: Porous Sintered Element (Moisture Drainage & Air Breathing)
Thread Standard: ISO Metric (1.5mm Pitch to EN 60423 / BS 3643)
Code of Protection: Ex eb IIC Gb, Ex tb IIIC Db
Hazardous Area Rating: Zone 1, Zone 2, Zone 21, Zone 22 & Heavy Industrial
Ingress Protection: IP66 (with sealing washer)
Operating Temperature Range: -50°C to +100°C
Application: Outdoor Enclosures, Industrial Switchgear, Marine Electrical Panels, Distribution Boxes, and Lighting Enclosures
