Description

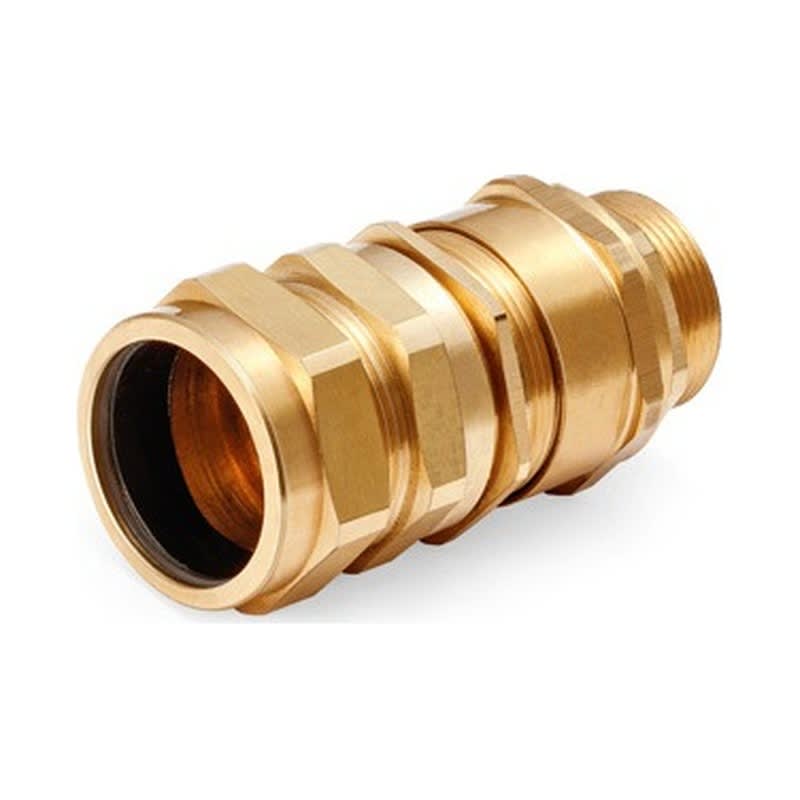

E1W Type Nickel Plated Brass Double Compression Cable Gland (E1W 20S BNP – E1W 75L BNP) | CABTEK | Made in India
The CABTEK E1W Type Nickel Plated Brass Cable Gland is an industrial double-compression termination fitting engineered for single wire armoured (SWA) cables in demanding indoor and outdoor environments. Precision-machined from high-grade CW614N brass with high-integrity nickel electro-plating, it delivers superior resistance against corrosion, tarnishing, chemical exposure, and coastal atmospheric salinity while providing independent environmental seals on both the cable’s inner bedding and outer jacket, combined with secure mechanical armour wire clamping and low-resistance earth continuity.
Equipped with resilient neoprene inner and outer compression seals delivering IP66/67 ingress protection against dust, water jets, and temporary submersion. Suitable for offshore platforms, marine environments, petrochemical plants, industrial switchgear panels, junction enclosures, and primary power distribution systems.
Available Sizes:
• E1W 20S BNP
• E1W 20L BNP
• E1W 25L BNP
• E1W 32L BNP
• E1W 40L BNP
• E1W 50S BNP
• E1W 50L BNP
• E1W 63S BNP
• E1W 63L BNP
• E1W 75S BNP
• E1W 75L BNP
Technical Specifications
Brand: CABTEK
Origin: Made in India
Gland Type: E1W Type (Double Compression)
Design Standards: BS 6121:Part-1:2005, EN 50262:1999
Material: Extruded Brass CW614N
Surface Finish: Nickel Plated
Seal Material: Neoprene Inner & Outer Compression Seals
Cable Type: Single Wire Armour (SWA)
Ingress Protection: IP66 / IP67
Operating Temperature: -20°C to +80°C
Thread Type: Standard Metric ISO
Available Sizes: E1W 20S BNP, E1W 20L BNP, E1W 25L BNP, E1W 32L BNP, E1W 40L BNP, E1W 50S BNP, E1W 50L BNP, E1W 63S BNP, E1W 63L BNP, E1W 75S BNP, E1W 75L BNP
Application: Offshore & Marine Installations, Chemical & Petrochemical Plants, Industrial Switchgear, Distribution Boards, and Outdoor Power Cabling
