CW Type Brass Cable Gland (20S – 90L) | CABTEK | Made in India

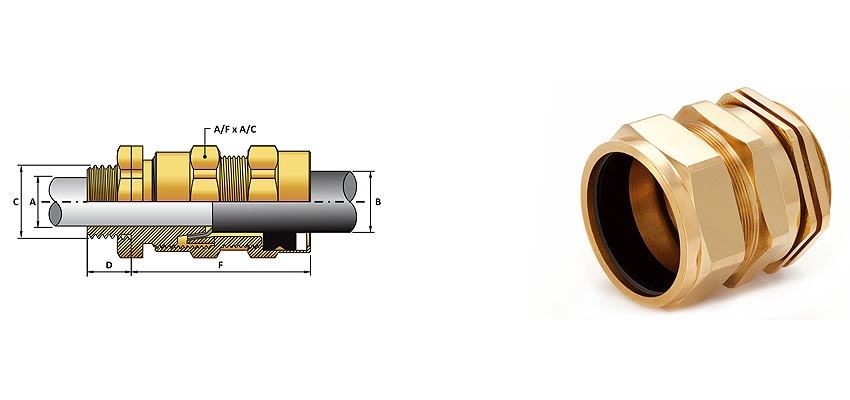

The CABTEK CW Type Cable Gland is an industrial termination fitting designed for single wire armoured (SWA) cables in both indoor and outdoor environments. Precision-machined from high-grade CW614N brass, it provides an environmental outer seal on the cable jacket alongside secure mechanical armour clamping and low-resistance earth continuity.

Engineered with a durable neoprene compression seal providing IP66 ingress protection against dust and water jets, it ensures reliable protection in demanding industrial installations. Suitable for low and medium-voltage power distribution, switchgear, junction boxes, and industrial infrastructure.

Available Sizes:
• CW 20S
• CW 20L
• CW 25S
• CW 25L
• CW 32S
• CW 32L
• CW 40S
• CW 40L
• CW 50S
• CW 50L
• CW 63S
• CW 63L
• CW 75S
• CW 75L
• CW 90L

Technical Specifications

Brand: CABTEK

Origin: Made in India

Gland Type: CW Type

Design Standards: BS 6121:Part-1:2005, EN 50262:1999, IEC 62444:2010

Material: Extruded Brass CW614N

Seal Material: Neoprene Outer Compression Seal

Cable Type: Single Wire Armour (SWA)

Ingress Protection: IP66

Operating Temperature: -20°C to +80°C

Thread Type: Standard Metric ISO

Available Sizes: CW 20S, CW 20L, CW 25S, CW 25L, CW 32S, CW 32L, CW 40S, CW 40L, CW 50S, CW 50L, CW 63S, CW 63L, CW 75S, CW 75L, CW 90L

Application: Industrial Enclosures, Switchgear, Distribution Boards, Transformers, Motor Terminal Boxes, and Industrial Power Cabling
