XB2 Emergency Stop Push Button Switches (22mm) | ZAIN
The ZAIN XB2-BS Series 22mm Emergency Stop Push Button Switches provide dependable emergency shutoff and circuit interruption for machinery, automation systems, conveyor lines, and operator control consoles. Built with a trigger-action latching mechanism that locks instantly when pushed down to halt equipment.

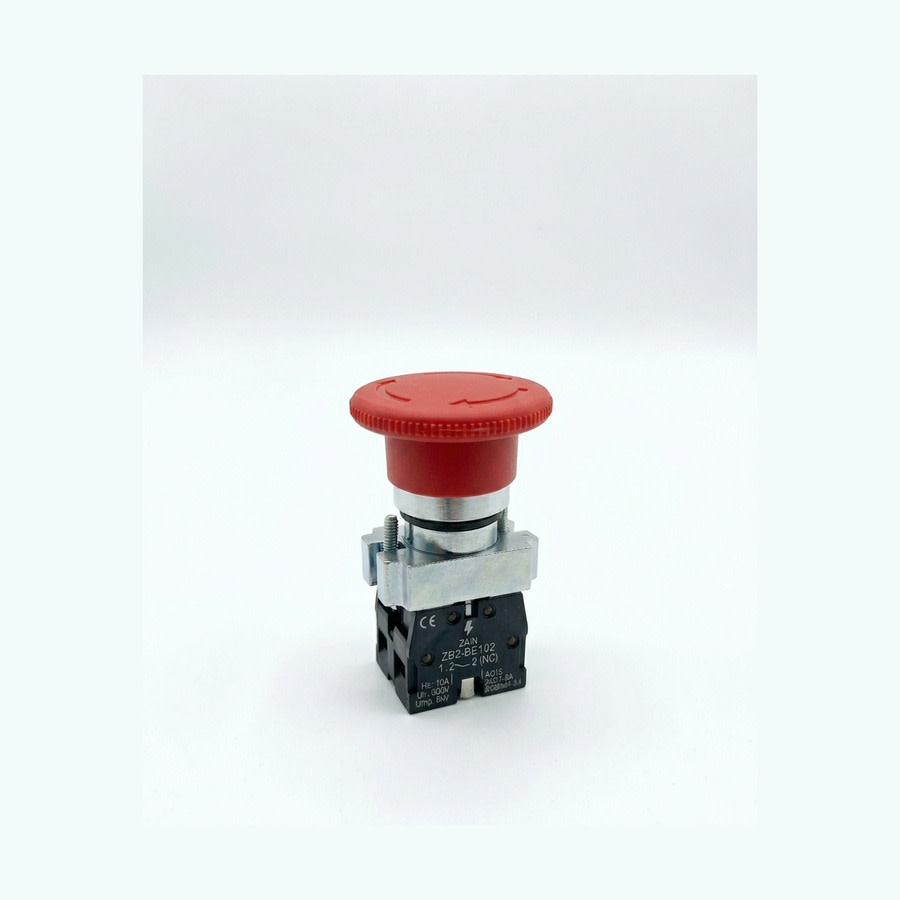

Equipped with a high-visibility 40mm red mushroom actuator mounted on a metal collar designed for standard 22mm panel cutouts. Available with a standard turn-to-release reset action or key-operated reset cylinder for controlled restart authority after an emergency shutdown.
Available Models:
• XB2-BS542 (1NC)
• XB2-BS142 Key (1NC)
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Emergency Stop Mushroom Push Button Switch
Series: XB2-BS
Mounting Hole Diameter: 22mm
Mushroom Head Diameter: 40mm
Actuator Color: Red
Action Type: Push-Lock Latching (Maintained)
Reset Type: Turn to Release / Key Release
Contact Configuration: 1NC (Normally Closed, Slow-Break)
Contact Rating: Ui 600V, Ith 10A, AC-15 (240V 3A)
Terminal Type: Screw Clamp Terminals
Application: Machinery Emergency Stop, Conveyor Safety Controls, Operator Consoles, and Industrial Automation Systems
