Description

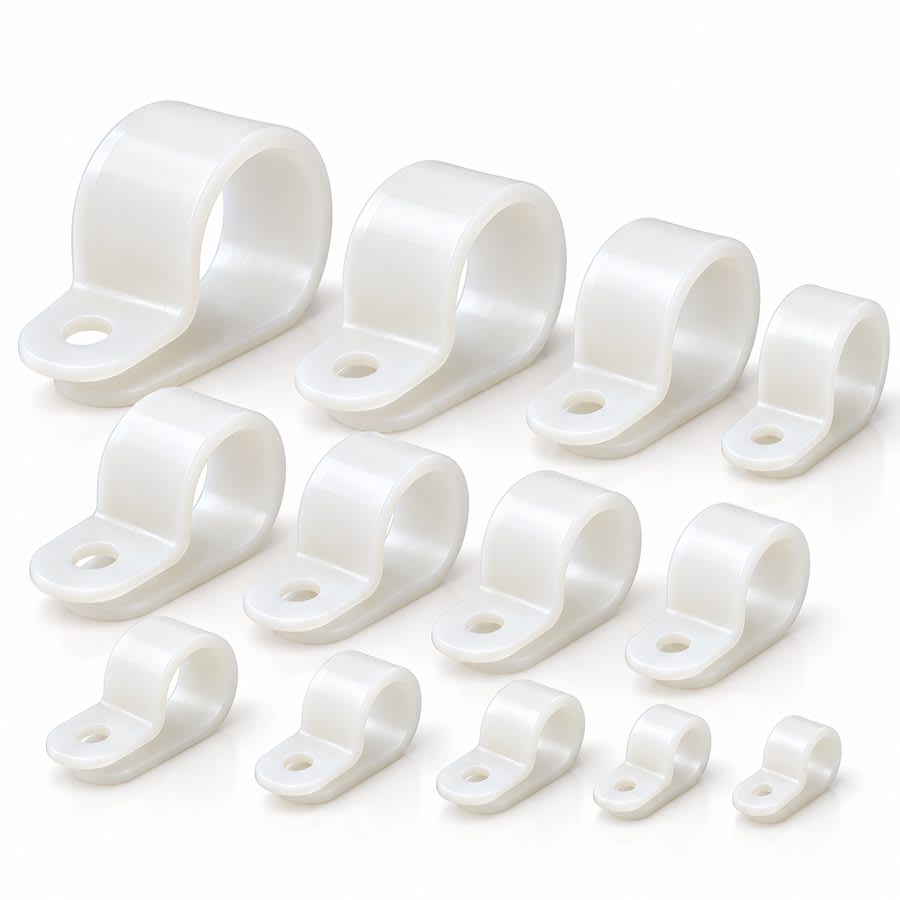

Nylon Cable Clamps – R-Type (1/8″ to 5/8″ / 3.2mm to 15.9mm) | LOYED | White
The LOYED CC-Series R-Type Cable Clamps (Screw-Mount Wire Clips) provide a durable, neat, and highly secure wire management solution for routing individual cables, conduit bundles, pneumatic hoses, and wiring harnesses. Designed for screw-mounting onto machinery frames, control panels, electronic enclosures, and automotive bodies, they hold wires securely in place, preventing snagging, sagging, and vibration-induced fatigue.
Precision-molded from premium, tough Polyamide Nylon 6.6 (UL 94V-2). The internal edges are specially rounded and chamfered to eliminate cable jacket cutting, chaffing, and insulation pinching during thermal movement or high-vibration operation. Each clamp features aligned screw-mounting holes designed to accept standard M4 / M5 fixing screws or rivets, ensuring effortless installation and permanent retention.
Available Sizes:
• CC-0 3.2mm (1/8″) White
• CC-0.5 4.8mm (3/16″) White
• CC-1 6.4mm (1/4″) White
• CC-1.5 7.9mm (5/16″) White
• CC-2 9.5mm (3/8″) White
• CC-3 12.7mm (1/2″) White
• CC-4 15.9mm (5/8″) White
Technical Specifications
Brand: LOYED
Product Type: R-Type Cable Clamp / Screw Mount Wire Clip
Material: High-Grade Nylon 6.6 (Polyamide), Halogen-Free
Color: White / Natural
Flammability Rating: UL 94V-2 Flame Retardant
Operating Temperature Range: -40°C to +85°C
Mounting Type: Screw Fixing (Single Eyelet Mounting Hole)
Clamping Range: 3.2mm (1/8″) to 15.9mm (5/8″)
Chemical Resistance: High resistance to fuels, lubricants, hydraulic oils, and organic solvents
Standards Compliance: RoHS Compliant, CE Certified
Application: Control Panel Wiring, Industrial Machinery, Server Racks, Automotive Wire Harnesses, Pneumatic Tubing, and Building Electrical Routing
