Description

Twin Entry Pre-Insulated Cord End Sleeve (2×0.50mm² to 2×16.00mm²) | Dual Wire Ferrules | LOYED

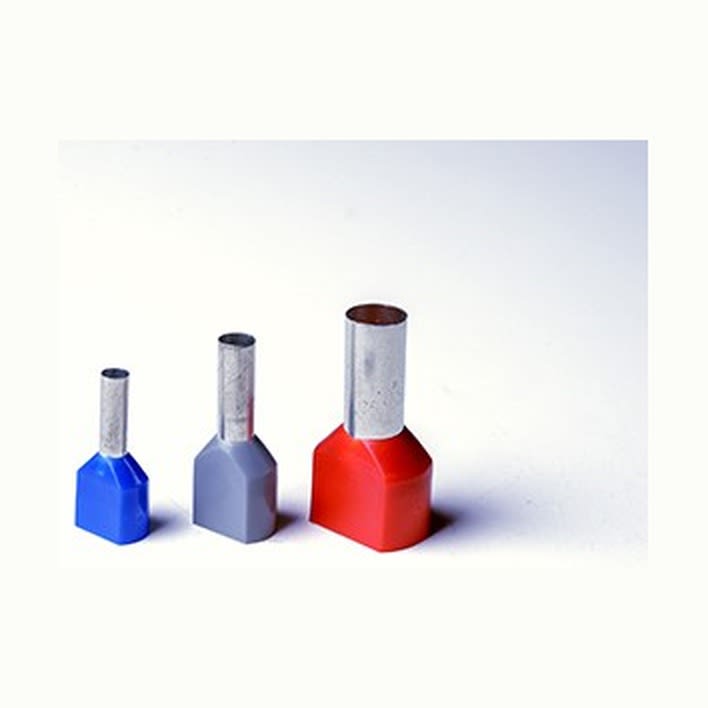

The LOYED Twin Entry Pre-Insulated Cord End Sleeves (Dual Bootlace Ferrules) are specifically designed to accommodate two flexible stranded copper conductors within a single sleeve. They provide a safe, space-saving, and high-conductivity termination for wire looping, daisy-chaining, and jumper bridging in control panels, switchgear, PLC modules, and terminal blocks.

By crimping both conductors into a single seamless tin-plated copper barrel, these dual ferrules prevent loose strands, short circuits, and mechanical damage from clamping screws. The enlarged dual-entry insulating collar provides strain relief and ensures smooth conductor insertion across standard DIN and French/German color codes.

Available Sizes:
• LT-005008X2 0.50MMX8L(2) WHITE
• LT-005008X2 0.50MMX8L(2) ORANGE
• LT-007508X2 0.75MMX8L(2) GREY
• LT-007510X2 0.75MMX10L(2) GREY
• LT-010008X2 1MMX8L(2) RED
• LT-010008X2 1MMX8L(2) YELLOW
• LT-010010X2 1MMX10L(2) RED
• LT-015008X2 1.5MMX8L(2) BLACK
• LT-015008X2 1.5MMX8L(2) RED
• LT-015012X2 1.5MMX12L(2) BLACK
• LT-015012X2 1.5MMX12L(2) RED
• LT-025010X2 2.5MMX10L(2) BLUE
• LT-025010X2 2.5MMX10L(2) GREY
• LT-025013X2 2.5MMX13L(2) BLUE
• LT-025013X2 2.5MMX13L(2) GREY
• LT-040012X2 4MMX12L(2) GREY
• LT-040012X2 4MMX12L(2) ORANGE
• LT-060014X2 6MMX14L(2) YELLOW
• LT-100014X2 10MMX14L(2) RED
• LT-160014X2 16MMX14L(2) GREEN

Technical Specifications

Brand: LOYED

Product Type: Twin Entry Pre-Insulated Cord End Sleeve (Dual Wire Ferrule)

Conductor Range: 2×0.50mm² to 2×16.00mm² (2×20 AWG to 2×6 AWG)

Tube Material: High-Purity Electrolytic Copper (Cu-ETP 99.9%)

Plating: Bright Tin Electro-Plated (Corrosion & Tarnish Resistant)

Insulation Material: Halogen-Free Flame Retardant Polyamide (Nylon 6.6) / PVC

Temperature Rating: -40°C to +105°C

Voltage Rating: Up to 600V Max

Standards Compliance: DIN 46228 Part 4, UL 486F, RoHS Compliant

Application: Daisy-Chain Wiring, Looping Connections, PLC I/O Terminals, DIN Rail Terminal Blocks, and Control Panels
