SS2KGP Nickel Plated Brass Double Compression Flameproof Cable Gland | CABTEK | Made in India

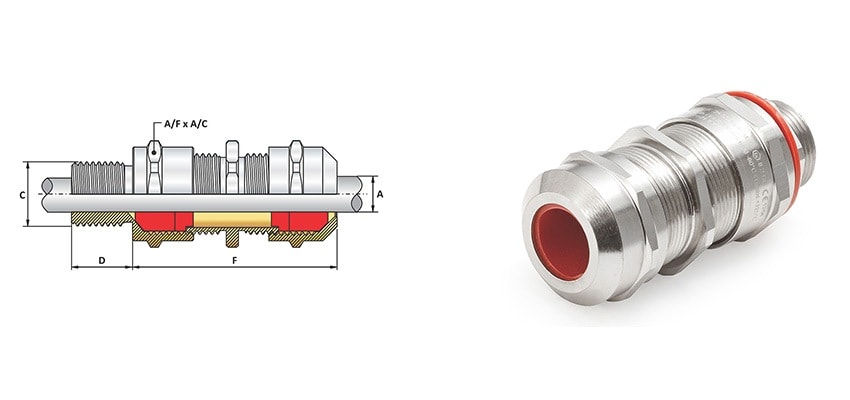

The CABTEK SS2KGP Type Cable Gland in Nickel Plated Brass is a heavy-duty industrial explosionproof (Ex d flameproof) double-compression termination fitting engineered for all types of unarmoured and flexible cables in hazardous indoor and outdoor locations. Precision-machined from high-grade CW614N/CW617N brass with high-integrity electrolytic nickel plating, it provides exceptional resistance against atmospheric corrosion, tarnishing, extreme humidity, and chemical exposure.
It provides a certified flameproof inner displacement seal on the cable’s inner sheath and a secondary weatherproof outer displacement seal on the outer sheath, ensuring ultimate sealing security and environmental protection without cold-flow damage to the cable cores. Certified to ATEX standards with LSOH silicone seals providing IP66 ingress protection across wide operating temperatures (-60°C to +125°C).
Available Sizes:
• SS2KGP 20S/16 BNP
• SS2KGP 20S BNP
• SS2KGP 20L BNP
• SS2KGP 25L BNP
• SS2KGP 32 BNP
Technical Specifications
Brand: CABTEK
Origin: Made in India
Gland Type: SS2KGP Type (Explosionproof / Flameproof Double Compression)
Code of Protection: Ex db IIC Gb, Ex tb IIIC Db
Compliance Standards: EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014
Certifications: ATEX Certificate No. TI16ATEX 671-1 X
Material: High-Grade Nickel Plated Brass (CW614N / CW617N / EN12165)
Seal Material: LSOH Silicone Inner & Outer Displacement Seals, LSOH Nylon Washer
Cable Compatibility: Unarmoured and Flexible Cables
Ingress Protection: IP66 (as per EN 60529)
Operating Temperature: -60°C to +125°C
Thread Type: Standard Metric ISO
Application: Offshore Platforms, Marine Vessels, Chemical & Petrochemical Refineries, Flameproof Terminal Boxes, and Unarmoured Heavy-Duty Cabling
