Single Entry Pre-Insulated Cord End Sleeve (0.25mm² to 150mm²) | Bootlace Ferrule | LOYED | Made in Taiwan

Description

Single Entry Pre-Insulated Cord End Sleeve (0.25mm² to 150mm²) | Wire Ferrules | LOYED

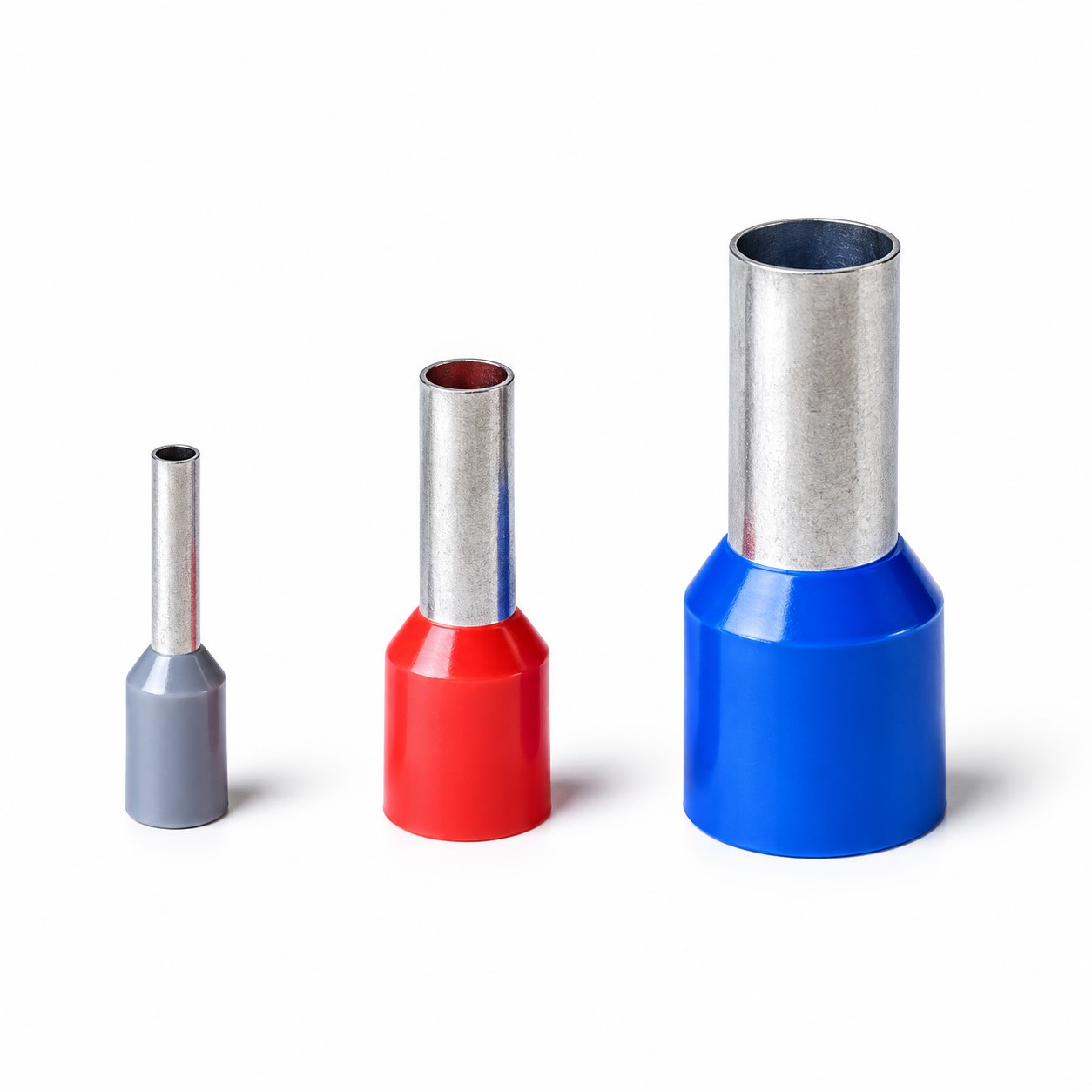

The LOYED Single Entry Pre-Insulated Cord End Sleeves (Bootlace Ferrules) are engineered to provide high-integrity, vibration-resistant terminations for stranded flexible copper conductors. By encasing multi-strand wire ends within a precision-formed copper tube, they prevent individual wire strand splaying, fraying, and damage caused by terminal block clamping screws, ensuring maximum electrical contact surface and reliable long-term connection.

Manufactured from high-purity seamless electrolytic copper (Cu-ETP / 99.9%) and electro-tin plated for superior oxidation and corrosion resistance, each ferrule is fitted with an ergonomic, halogen-free insulated plastic collar that provides strain relief and guides conductors smoothly into the barrel.

Available Sizes:
• LT-002508 0.25MMX8L PURPLE
• LT-005008 0.50MMX8L WHITE
• LT-005008 0.50MMX8L ORANGE
• LT-005010 0.50MMX10L WHITE
• LT-007508 0.75MMX8L GREY
• LT-007508 0.75MMX8L BLUE
• LT-007510 0.75MMX10L GREY
• LT-007512 0.75MMX12L GREY
• LT-010008 1MMX8L RED
• LT-010008 1MMX8L YELLOW
• LT-010010 1MMX10L RED
• LT-010010 1MMX10L YELLOW
• LT-010012 1MMX12L RED
• LT-010012 1MMX12L YELLOW
• LT-015008 1.5MMX8L RED
• LT-015008 1.5MMX8L BLACK
• LT-015010 1.5MMX10L RED
• LT-015010 1.5MMX10L BLACK
• LT-015012 1.5MMX12L RED
• LT-015012 1.5MMX12L BLACK
• LT-015018 1.5MMX18L RED
• LT-015018 1.5MMX18L BLACK
• LT-025008 2.5MMX8L BLUE
• LT-025008 2.5MMX8L GREY
• LT-025010 2.5MMX10L BLUE
• LT-025010 2.5MMX10L GREY
• LT-025012 2.5MMX12L BLUE
• LT-025012 2.5MMX12L GREY
• LT-025018 2.5MMX18L BLUE
• LT-040010 4MMX10L GREY
• LT-040010 4MMX10L ORANGE
• LT-040012 4MMX12L GREY
• LT-040012 4MMX12L ORANGE
• LT-040018 4MMX18L GREY
• LT-040018 4MMX18L ORANGE
• LT-060012 6MMX12L YELLOW
• LT-060012 6MMX12L BLACK
• LT-060012 6MMX12L GREEN
• LT-060018 6MMX18L YELLOW
• LT-100012 10MMX12L RED
• LT-100012 10MMX12L IVORY
• LT-100018 10MMX18L BLACK
• LT-160012 16MMX12L BLUE
• LT-160012 16MMX12L IVORY
• LT-160018 16MMX18L BLUE
• LT-250016 25MMX16L YELLOW
• LT-250016 25MMX16L BROWN
• LT-350016 35MMX16L RED
• LT-500020 50MMX20L BLUE
• LT-700021 70MMX21L YELLOW
• LT-950025 95MMX25L RED
• LT-120027 120MMX27L BLUE
• LT-150032 150MMX32L YELLOW

Technical Specifications

Brand: LOYED

Product Type: Single Entry Pre-Insulated Cord End Sleeve (Wire Pin Ferrule)

Conductor Range: 0.25mm² to 150mm² (24 AWG to 300 MCM)

Tube Material: High-Purity Electrolytic Copper (Cu-ETP 99.9%)

Plating: Bright Tin Electro-Plated (Corrosion & Tarnish Resistant)

Insulation Material: Halogen-Free Flame Retardant Polyamide (Nylon 6.6) / PVC

Temperature Rating: -40°C to +105°C

Voltage Rating: Up to 600V Max

Standards Compliance: DIN 46228 Part 4, UL 486F, RoHS Compliant

Application: Screw Clamp Terminal Blocks, Push-In Terminals, Contactor & Relay Wiring, Distribution Boards, and Industrial Control Panels
