Description

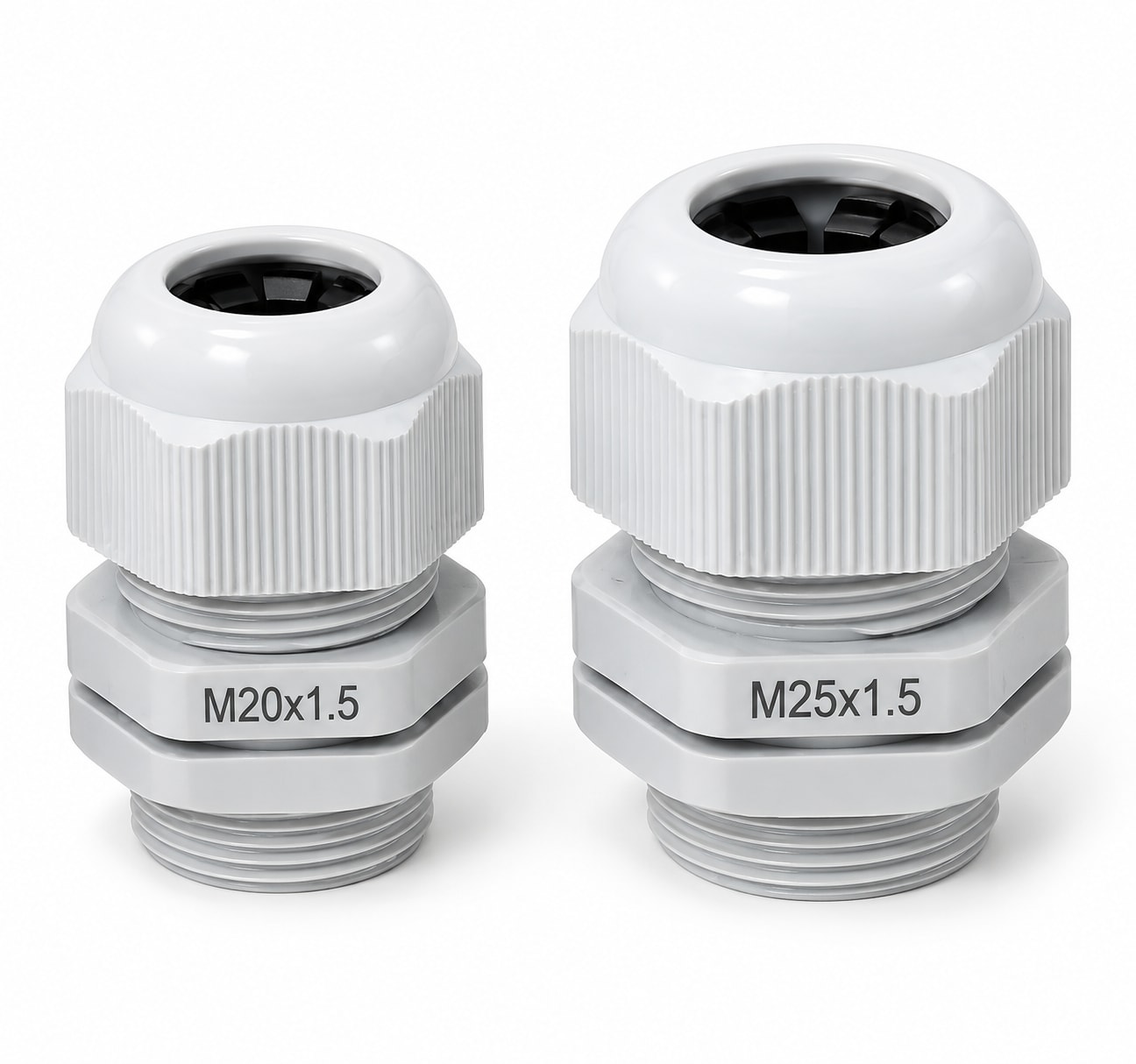

PVC Metric Cable Glands – Silver Grey / White (M20 to M25) | LOYED | Made in Taiwan
The LOYED Metric Series Silver Grey / White PVC/Nylon Cable Glands provide certified IP68 waterproof sealing, environmental protection, and mechanical strain relief for electrical cables entering distribution boards, outdoor junction boxes, motors, and automation panels. Engineered with a specialized progressive clamping claw and inner elastomeric nitrile seal, they grip round cables firmly without damaging outer sheathing, preventing accidental pull-out and isolating sensitive internal electronics from moisture, dust, and water jets.
Manufactured from high-grade, UV-resistant, flame-retardant Polyamide/PVC (UL 94V-2) in Silver Grey / White (RAL 7035). Each complete set is supplied with a matching hex locknut, flat washer, body, elastomeric compression insert, and dome sealing cap. Precision-engineered metric threads ensure a tight, torque-resistant fit with standard threaded panel entries or clearance knockouts.
Available Sizes:
• M-20X1.5 White (Silver Grey)
• M-25X1.5 White (Silver Grey)
Technical Specifications
Brand: LOYED
Origin: Made in Taiwan
Product Type: Metric Thread PVC / Nylon Cable Gland
Body & Nut Material: High-Grade Nylon 6.6 / PVC (Halogen-Free, UV-Stabilized)
Seal & Washer Material: Nitrile Rubber (NBR) / EPDM
Color: Silver Grey / White (RAL 7035)
Thread Standard: ISO Metric (EN 60423) M20x1.5, M25x1.5
Ingress Protection: IP68 (Submersible / Waterproof & Dust-tight)
Flammability: UL 94V-2 Self-Extinguishing
Operating Temperature Range: -40°C to +100°C (Short term up to +120°C)
Standards Compliance: EN 50262, RoHS Compliant, CE Certified
Application: Outdoor Junction Boxes, Control Cabinets, CCTV & Telecom Enclosures, Marine & Industrial Automation, and Power Distribution Panels
