Insulated Ring Terminals (0.5mm² to 6.0mm² / Stud M3 to M12) | LOYED | Made in Taiwan

Description

Insulated Ring Terminals (0.5mm² to 6.0mm² / M3 to M12) | LOYED | Made in Taiwan

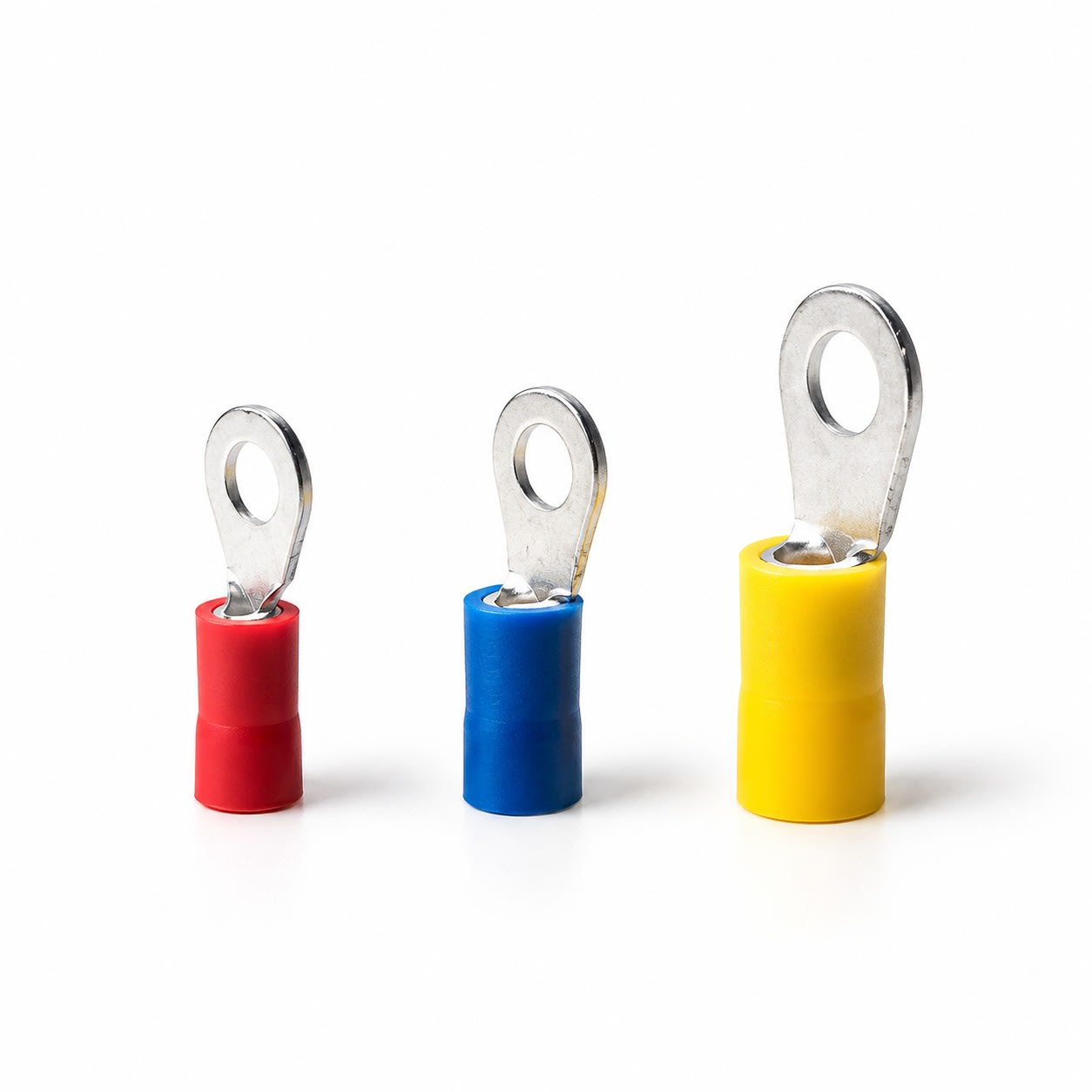

The LOYED Insulated Ring Terminals (Crimp Ring Lugs) provide permanent, highly reliable bolted terminations for stranded and solid copper conductors. Ideal for electrical switchgear, distribution boards, automotive wiring, control cabinets, and industrial machinery, the closed-ring design ensures the terminal cannot slip or detach from the terminal stud even if the clamping nut or screw becomes loose.

Manufactured from high-purity, premium electrolytic copper (Cu-ETP 99.9%) and electro-tin plated to withstand harsh industrial atmospheres, prevent galvanic oxidation, and maintain minimal electrical resistance. Each terminal is assembled with an easy-entry flared vinyl (PVC) insulating collar that guides stranded wires smoothly into the barrel without wire turnback and provides electrical insulation up to 600V.

Available Sizes:
• VA3-1 M3 (0.5-1.5mm² / Red)
• VA4-1 M4 (0.5-1.5mm² / Red)
• VA5-1 M5 (0.5-1.5mm² / Red)
• VA6-1 M6 (0.5-1.5mm² / Red)
• VA8-1 M8 (0.5-1.5mm² / Red)
• VA10-1 M10 (0.5-1.5mm² / Red)
• VA12-1 M12 (0.5-1.5mm² / Red)
• VA3-2.5 M3 (1.5-2.5mm² / Blue)
• VA4-2.5 M4 (1.5-2.5mm² / Blue)
• VA5-2.5 M5 (1.5-2.5mm² / Blue)
• VA6-2.5 M6 (1.5-2.5mm² / Blue)
• VA8-2.5 M8 (1.5-2.5mm² / Blue)
• VA10-2.5 M10 (1.5-2.5mm² / Blue)
• VA12-2.5 M12 (1.5-2.5mm² / Blue)
• VA4-6 M4 (4.0-6.0mm² / Yellow)
• VA5-6 M5 (4.0-6.0mm² / Yellow)
• VA6-6 M6 (4.0-6.0mm² / Yellow)
• VA8-6 M8 (4.0-6.0mm² / Yellow)
• VA10-6 M10 (4.0-6.0mm² / Yellow)
• VA12-6 M12 (4.0-6.0mm² / Yellow)

Technical Specifications

Brand: LOYED

Origin: Made in Taiwan

Product Type: Pre-Insulated Ring Tongue Terminal / Crimp Ring Lug

Conductor Range: 0.5mm² to 6.0mm² (22 to 10 AWG)

Stud Sizes: M3, M4, M5, M6, M8, M10, M12

Terminal Body Material: High-Conductivity Electrolytic Copper (Cu-ETP 99.9%)

Surface Finish: Electro-Tin Plated (Corrosion & Tarnish Resistant)

Insulation Material: Flame Retardant Vinyl (PVC) with Flared Easy-Entry Funnel

Voltage Rating: 600V Max

Operating Temperature Range: -10°C to +75°C (105°C max intermittent)

Industry Standards: UL Listed, CSA Certified, RoHS Compliant

Application: Power Distribution Panels, Switchgear, Busbar Grounding, Control Relay Terminations, and Automotive Wiring
