Insulated Pin Terminals (0.5mm² to 6.0mm²) | LOYED | Made in Taiwan
The LOYED Insulated Pin Terminals (Solid Pin Crimp Connectors) are engineered for reliable electrical terminations where space is confined or where wires must insert directly into European-style terminal blocks, relay sockets, circuit breakers, and electronic controllers. By replacing loose wire strands with a solid, tin-plated copper pin, they prevent wire breakage and ensure maximum electrical conductivity under screw-down or spring-cage clamps.
Precision-drawn from high-conductivity electrolytic copper (Cu-ETP 99.9%) and electro-tin plated to deliver exceptional corrosion resistance, low electrical resistance, and long-term durability. Each terminal is fitted with an easy-entry flared vinyl (PVC) insulation sleeve that guides stranded conductors smoothly into the barrel without strand flare-out, rated for up to 600V.

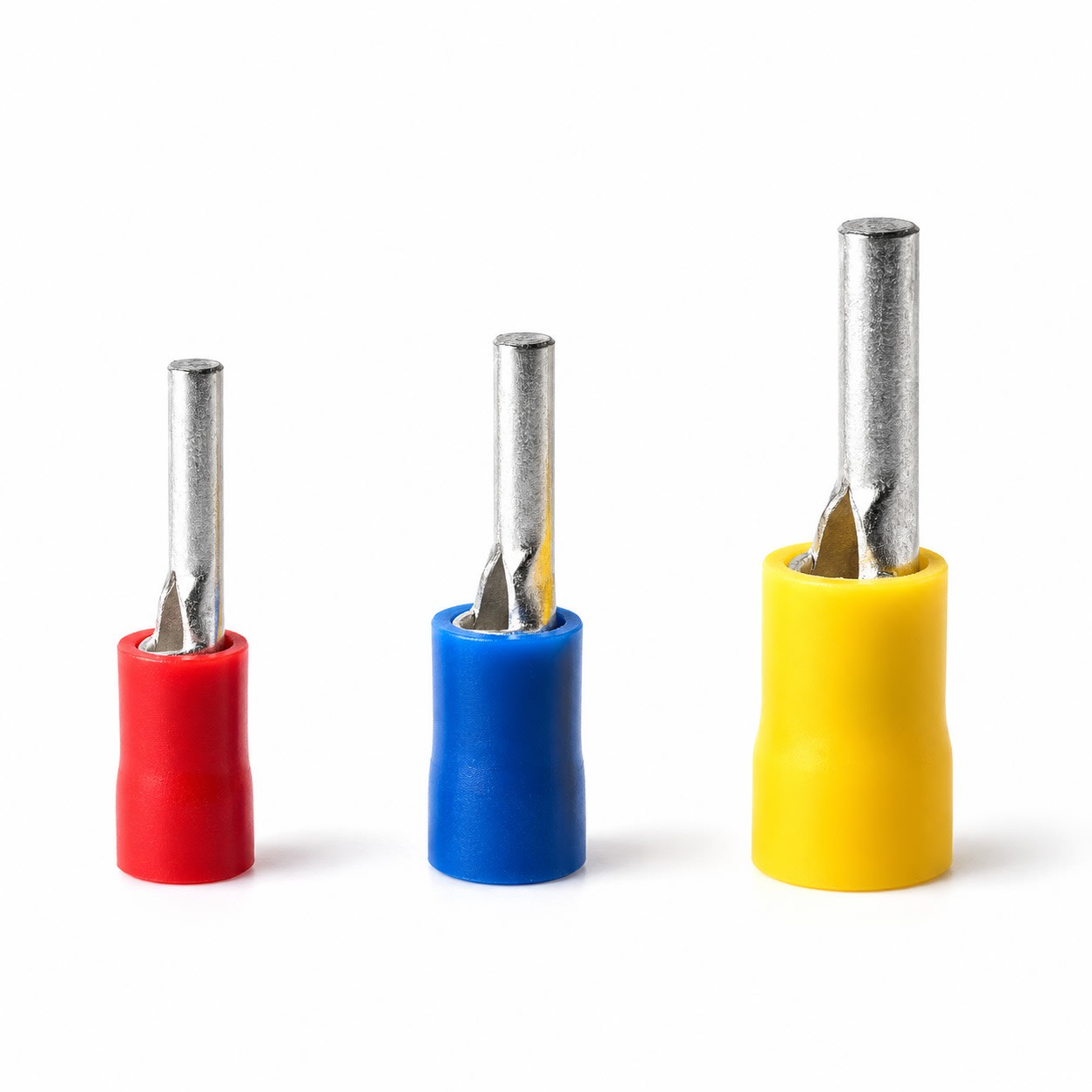

Available Sizes:
• VPT-1 0.5-1.5mm² (Red)
• VPT-2 1.5-2.5mm² (Blue)
• VPT-5 4.0-6.0mm² (Yellow)
Technical Specifications
Brand: LOYED
Origin: Made in Taiwan
Product Type: Insulated Pin Terminal / Pin Crimp Lug
Conductor Range: 0.5mm² to 6.0mm² (22 to 10 AWG)
Terminal Body Material: High-Conductivity Electrolytic Copper (Cu-ETP 99.9%)
Surface Finish: Bright Electro-Tin Plated (Corrosion & Tarnish Resistant)
Insulation Material: Flame Retardant Vinyl (PVC) with Flared Easy-Entry Collar
Voltage Rating: 600V Max
Operating Temperature Range: -10°C to +75°C (105°C max intermittent)
Industry Standards: UL Listed, CSA Certified, RoHS Compliant
Application: DIN Rail Terminal Blocks, Miniature Circuit Breakers (MCB), Relay Bases, PLC Controllers, and Switchgear
