Insulated Male Push-On Terminals MDD Series | ZAIN
The ZAIN MDD Series Insulated Male Push-On Terminals provide standard male tab connections that slide smoothly into matching female disconnects (such as FDD and FDFD series). Ideal for inline harness connections, equipment service disconnects, relay wiring, and panel breakouts.
Constructed from tinned conductive brass with a standardized 6.3mm (0.250 inch) male blade tongue and an insulated PVC wire barrel. The flared funnel sleeve guides flexible copper conductor strands directly into the barrel without bunching or bending back.

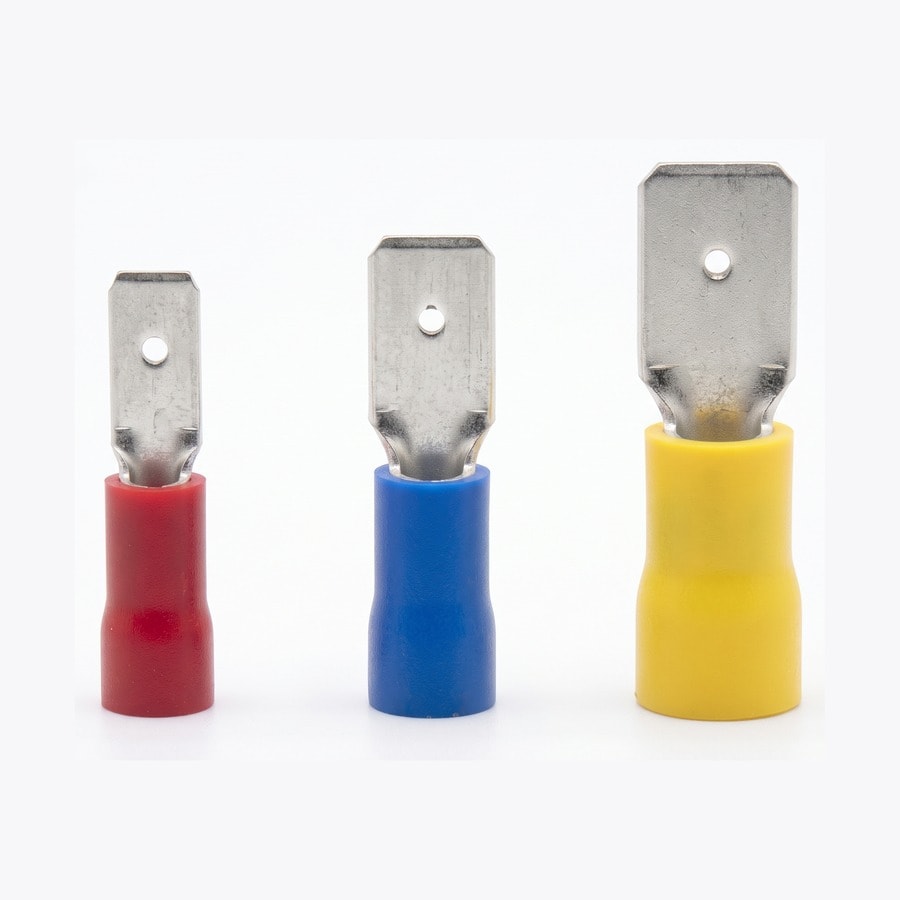

Available Sizes:
• MDD1.25-250 (Red / 0.5-1.5mm²)
• MDD2-250 (Blue / 1.5-2.5mm²)
• MDD5.5-250 (Yellow / 4.0-6.0mm²)
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Insulated Male Quick Disconnect Tab (MDD Series)
Terminal Material: Tinned Brass
Insulation Material: Color-Coded PVC
Blade Width: 6.3mm (0.250 inch)
Blade Thickness: 0.8mm
Wire Range: 0.5mm² to 6.0mm²
Maximum Voltage: 600V
Operating Temperature Range: -10°C to +75°C
Application: Control Panels, In-Line Harness Disconnects, Automotive Wiring, Relay Wiring, and Machinery Controls
