Insulated Female Receptacle Terminals FDD Series | ZAIN
The ZAIN FDD Series Insulated Female Receptacle Terminals provide standard, fast push-on electrical disconnections and connections for control relays, microswitches, automotive harnesses, distribution panels, and appliances. Designed to mate securely with standard male spade tabs while maintaining low contact resistance.
Constructed from tinned conductive brass with an open rolled female detent and a color-coded PVC insulation barrel. The funnel-entry sleeve guides stranded wire effortlessly into the crimping zone.

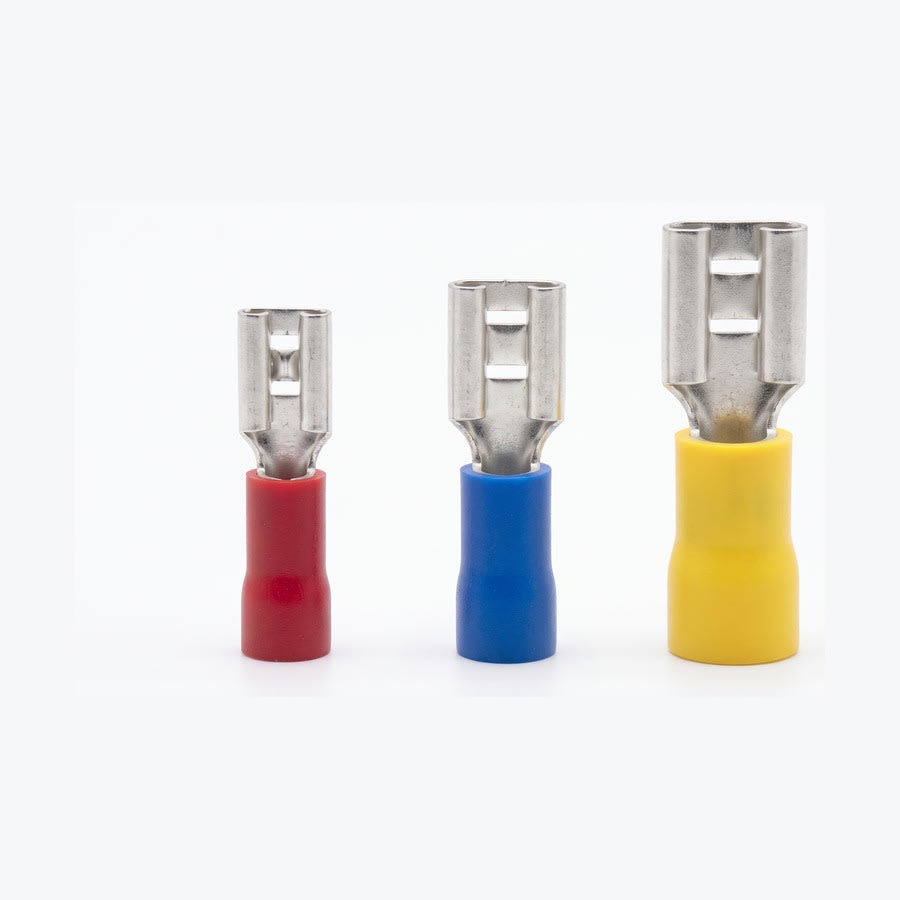

Available Sizes:
• FDD1.25-205 (Red)
• FDD2-205 (Blue)
• FDD5.5-205 (Yellow)
• FDD1.25-250 (Red)
• FDD2-250 (Blue)
• FDD5.5-250 (Yellow)
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Semi-Insulated Female Quick Disconnect Receptacle (FDD Series)
Terminal Material: Tinned Brass
Insulation Material: Color-Coded PVC
Tab Fitment Sizes: 4.8mm (205) / 6.3mm (250)
Wire Range: 0.5mm² to 6.0mm²
Maximum Voltage: 300V / 600V
Operating Temperature Range: -10°C to +75°C
Application: Control Panels, Automotive Wiring Harnesses, Relays, Solenoid Valves, and Home Appliances
