Insulated Butt Splice Connectors (0.5mm² to 6.0mm²) | LOYED | Made in Taiwan
The LOYED Insulated Butt Splice Connectors (In-Line Wire Crimp Joiners) provide a fast, secure, and permanent in-line splice for two flexible or stranded copper conductors. Widely utilized in electrical repair, automotive wiring, control cabinets, and commercial building installations, they eliminate the need for soldering or wire wrapping while maintaining high mechanical pull-out strength.
Manufactured with a high-conductivity seamless electrolytic copper tube (Cu-ETP 99.9%) and electro-tin plated to prevent corrosion, oxidize-free contact, and maintain minimal electrical resistance. Each butt connector features an internal built-in wire stop in the center of the barrel to ensure equal conductor insertion from both ends. The assembly is insulated with flared, flame-retardant vinyl (PVC) for easy wire insertion without strand splay and 600V rated insulation integrity.

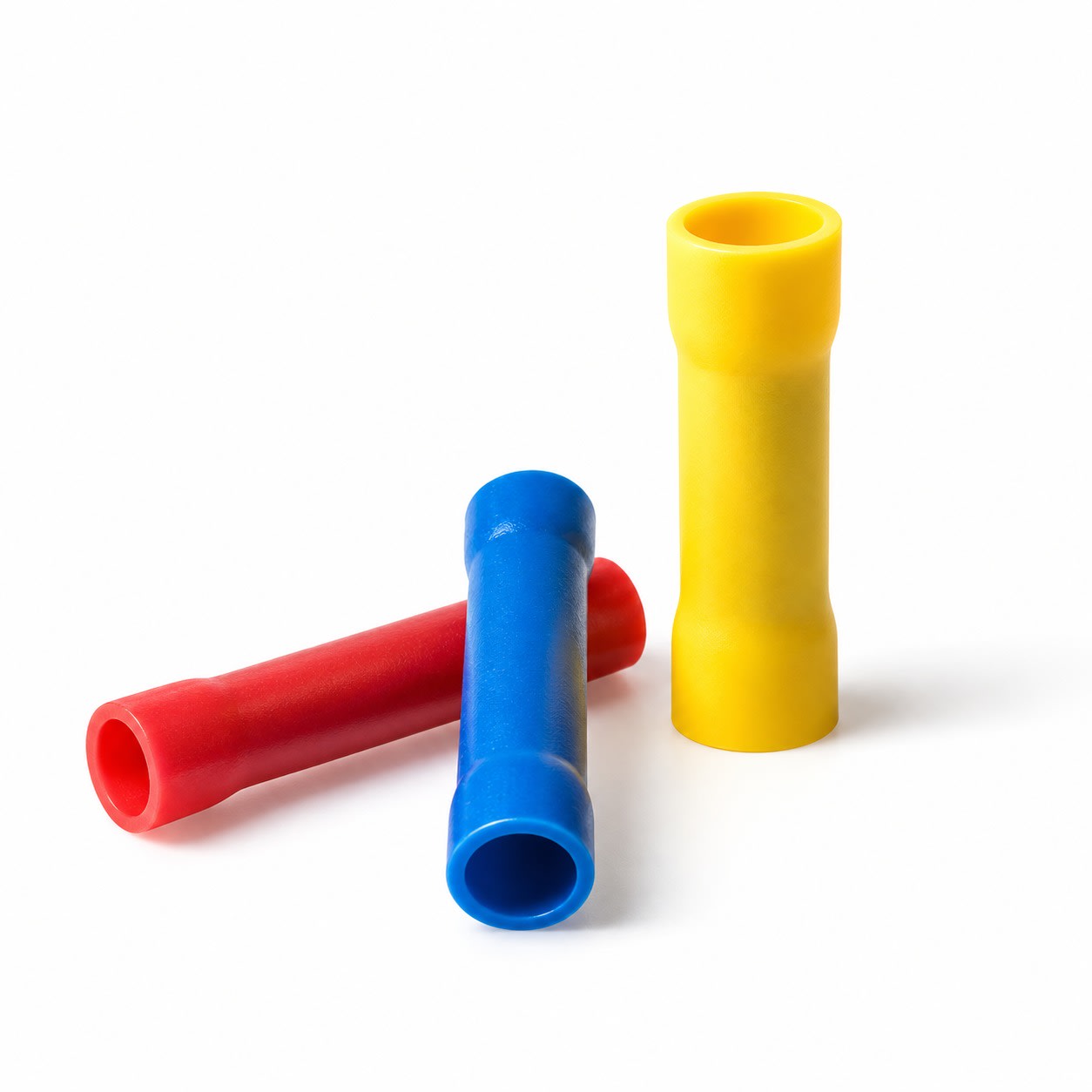

Available Sizes:
• VBC-1 0.5-1.5mm² (Red)
• VBC-2 1.5-2.5mm² (Blue)
• VBC-5 4.0-6.0mm² (Yellow)
Technical Specifications
Brand: LOYED
Origin: Made in Taiwan
Product Type: Insulated Butt Splice Connector / In-Line Wire Joiner
Conductor Range: 0.5mm² to 6.0mm² (22 to 10 AWG)
Terminal Barrel Material: Seamless High-Conductivity Electrolytic Copper (Cu-ETP 99.9%)
Surface Finish: Electro-Tin Plated (Corrosion & Tarnish Resistant)
Insulation Material: Flame Retardant Vinyl (PVC) with Flared Easy-Entry Collar
Features: Built-in Center Wire Stop for Precise Wire Positioning
Voltage Rating: 600V Max
Operating Temperature Range: -10°C to +75°C (105°C max intermittent)
Industry Standards: UL Listed, CSA Certified, RoHS Compliant
Application: In-Line Wire Extensions, Automotive & Marine Wiring, Control Panel Wire Harnesses, and Electrical Maintenance
