Fully Nylon Moulded Female Receptacle Terminals (0.5mm² to 6.0mm² / 6.3mm Tab) | LOYED | Made in Taiwan
The LOYED ILND Series Fully Nylon Moulded Female Receptacle Terminals (Fully Insulated Quick Disconnect Sockets) provide complete, seamless touch-proof electrical insulation. Unlike standard vinyl terminals with open mating slots, these connectors feature an integrally molded, one-piece Nylon 66 housing that fully encloses both the wire crimp barrel and the entire female disconnect receptacle, preventing accidental short circuits, flashovers, and moisture ingress in dense panel installations.
Manufactured with a high-conductivity brass contact sleeve, tin-plated for superior corrosion resistance and low contact resistance. The translucent, impact-resistant nylon housing allows visual inspection of wire insertion while withstanding high operating temperatures up to 105°C without cracking, stiffening, or degrading.

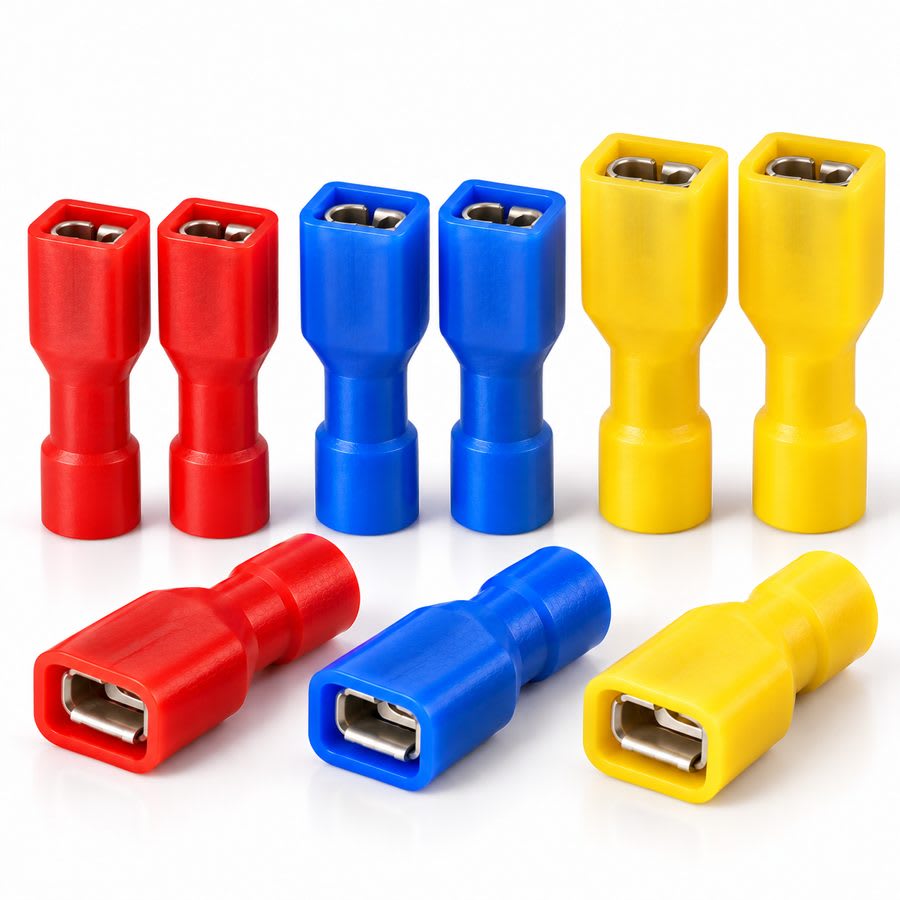

Available Sizes:
• ILND1-6.3F 6.3mm Tab (0.5-1.5mm² / Red)
• ILND2-6.3F 6.3mm Tab (1.5-2.5mm² / Blue)
• ILND5-6.3F 6.3mm Tab (4.0-6.0mm² / Yellow)
Technical Specifications
Brand: LOYED
Origin: Made in Taiwan
Product Type: Fully Nylon Moulded Female Quick Disconnect Receptacle Terminal
Conductor Range: 0.5mm² to 6.0mm² (22 to 10 AWG)
Tab Size: 6.3mm / 6.35mm x 0.8mm (0.250″)
Terminal Contact Material: High-Conductivity Brass Alloy
Surface Finish: Bright Electro-Tin Plated (Corrosion & Tarnish Resistant)
Insulation Material: Integrally Moulded Nylon 6.6 (Polyamide), Flame Retardant, Halogen-Free
Voltage Rating: 600V Max (1000V in signs/fixtures)
Operating Temperature Range: -40°C to +105°C
Industry Standards: UL Listed, CSA Certified, RoHS Compliant
Application: High-Density Control Panels, Automotive Wire Harnesses, Commercial Appliances, Switchgear, and Industrial Automation
