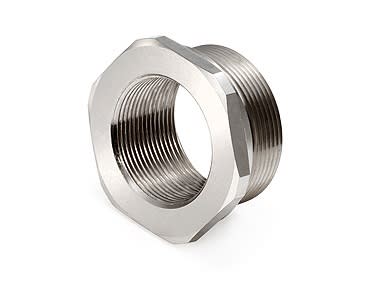

Ex d Flameproof Metric Thread Reducer | Brass & Nickel Plated Brass
The Ex d / Ex eb certified Thread Reducer provides a secure, flameproof connection between electrical equipment enclosure entries and cable glands or conduits having smaller dissimilar metric thread sizes. Designed for use in heavy industrial and explosive hazardous atmospheres, it maintains equipment flameproof integrity (Ex db IIC Gb), increased safety (Ex eb IIC Gb), and dust ignition protection (Ex tb IIIC Db).
Precision-machined from solid high-grade brass (CW614N / CW617N / EN12165) and available in Natural Brass and corrosion-resistant Nickel Plated Brass (BNP), it features precision-cut external male and internal female ISO metric threads (1.5mm pitch) with an external hexagonal drive profile for high-torque spanner tightening.
Available Sizes:
• M25 x M16
• M25 x M20
• M32 x M20
• M32 x M25
• M40 x M20
• M40 x M25
• M40 x M32
• M50 x M20
• M50 x M25
• M50 x M32
• M50 x M40
• M63 x M40
• M63 x M50
• M75 x M40
• M75 x M50
• M75 x M63
Technical Specifications
Product Type: Flameproof Ex d / Ex eb Thread Reducer
Material Options: Extruded Brass (CW614N / CW617N / EN12165) / Nickel Plated Brass (BNP)
Code of Protection: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Area Classification: Group II, Category 2 (Zone 1 / Zone 2, Zone 21 / Zone 22)
Gas Group: IIA, IIB, IIC
Standards Compliance: EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-7, EN/IEC 60079-31
Ingress Protection: IP67 (as per IEC 60529)
Operating Temperature: -60°C to +125°C
Thread Standard: ISO Metric (1.5mm Pitch)
Application: Hazardous Area Enclosures, Offshore Platforms, Chemical Refineries, Control Panels, and Heavy Industrial Switchgear
