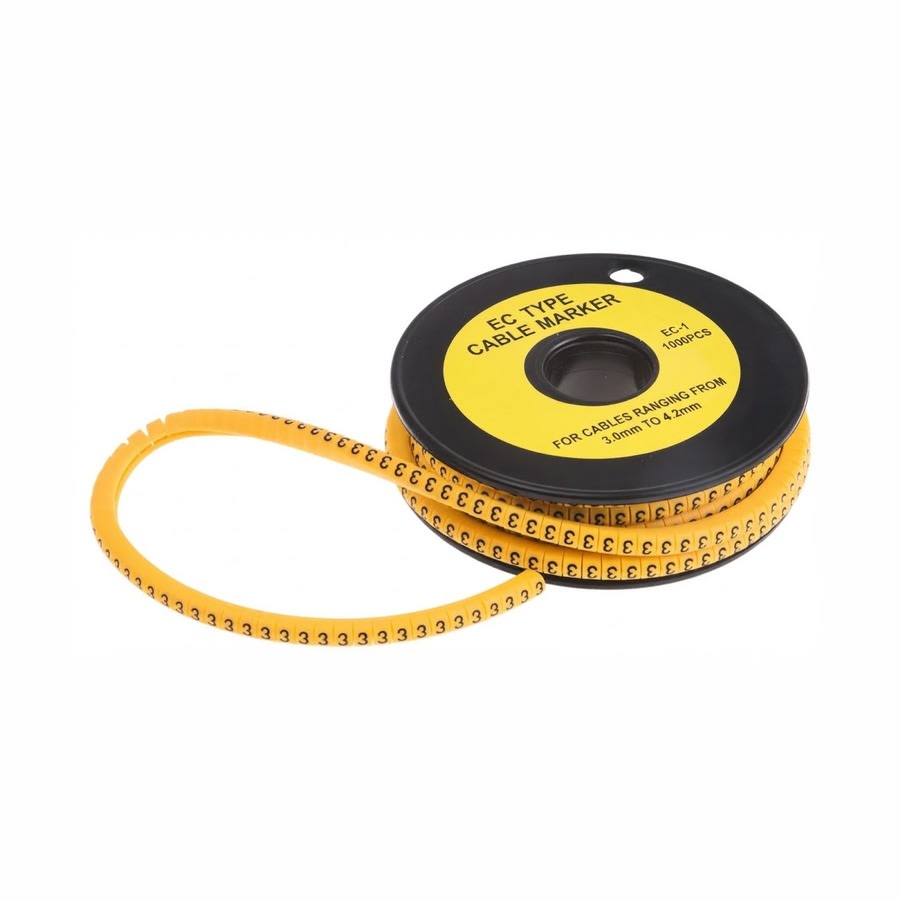

EC Type Flexible PVC Cable Markers (Yellow) | ZAIN
The ZAIN EC Series Flexible PVC Cable Markers provide standard, clear identification for electrical wires, control cables, switchboard circuits, and automated machinery panels. The expandable chevron-cut profile allows the marker to slide snugly onto the conductor and lock securely with adjacent markers, preventing twisting and keeping complex alphanumeric wire codes aligned.
Molded from soft, durable PVC in high-visibility industrial yellow. Each character is hot-stamped in bold black ink with deep concave lettering that resists rubbing, oils, and general panel cleaning agents.
Available Sizes:
• EC-0 (1.0mm – 1.5mm²)
• EC-1 (2.5mm – 4.0mm²)
• EC-2 (4.0mm – 6.0mm²)
• EC-3 (6.0mm – 10.0mm²)
• EC-4 (10.0mm – 16.0mm²)
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Interlocking Push-On Cable Marker Ferrule
Series: EC Series (EC-0, EC-1, EC-2, EC-3, EC-4)
Material: Flexible Soft PVC
Body Color: Industrial Yellow
Print Color: Black (Hot-Stamped)
Wire Size Range: 1.0mm² to 16.0mm²
Operating Temperature Range: -20°C to +85°C
Mounting Method: Slide-On Wire Ferrule (Interlocking Chevron Cut)
Application: Control Panels, Switchboards, Automation Wiring, Distribution Boards, and Electrical Circuit Tracing
