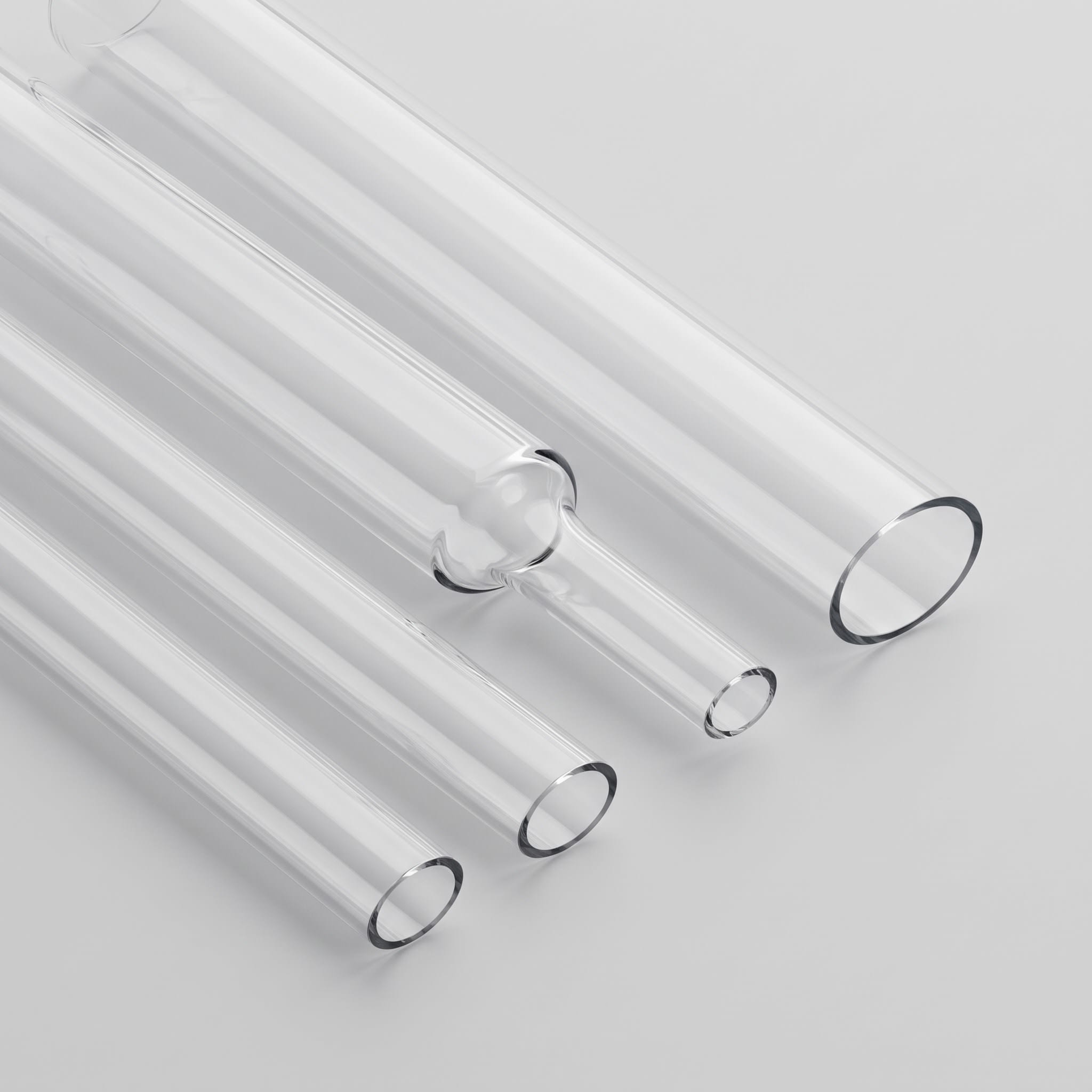

Clear Heat Shrink Sleeve | G-Apex G1 | Made in Taiwan | High Transparency Polyolefin Tubing

Description

Clear Heat Shrink Sleeve | G-Apex G1 | Made in Taiwan | High Transparency Polyolefin Tubing

G-Apex G1 is a premium thin-wall, halogen-free, non-flame retardant polyolefin heat shrinkable tubing engineered for outer insulation, mechanical protection, and visual inspection. Manufactured in Taiwan by G-Apex. G1 complies with global RoHS regulations and delivers exceptional optical clarity with a glossy surface finish.

Featuring a 2:1 shrink ratio with a low minimum shrink temperature of 70°C and full recovery at 100°C, G1 allows rapid shrinkage without damaging temperature-sensitive components. Its high transparency ensures underlying wire splices, terminations, printed labels, barcodes, and cable markers remain completely legible and inspectable throughout their service life.

Available Sizes:
• 1.5mm
• 2.5mm
• 3mm
• 4mm
• 5mm
• 6mm
• 8mm
• 10mm
• 12mm
• 15mm
• 20mm
• 25mm
• 30mm
• 35mm
• 40mm
• 50mm
• 60mm
• 70mm

Technical Specifications

Brand: G-Apex

Model: G1

Origin: Made in Taiwan (Taiwan Yun Lin Electronic Co., Ltd.)

Material: Thin-Wall Polyolefin (Halogen-Free)

Color: Clear / Transparent

Shrink Ratio: 2:1

Continuous Operating Temperature: -55°C to +105°C

Minimum Shrink Temperature: 70°C

Full Recovery Temperature: Above 100°C

Concentricity: ≥70%

Tensile Strength: ≥10.3 MPa (Typical Value: ≥14.0 MPa)

Elongation at Break: ≥200% (Typical Value: ≥400%)

Dielectric Voltage Withstand: AC 2500V / 60s (No breakdown)

Volume Resistivity: ≥10^14 Ω·cm

Compliance: RoHS Compliant

Available Sizes: 1.5mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm

Application: Cable Label Protection, Wire Marker Sleeve, Electronic Component Insulation, Visual Inspection Cover, and Wire Harnessing
