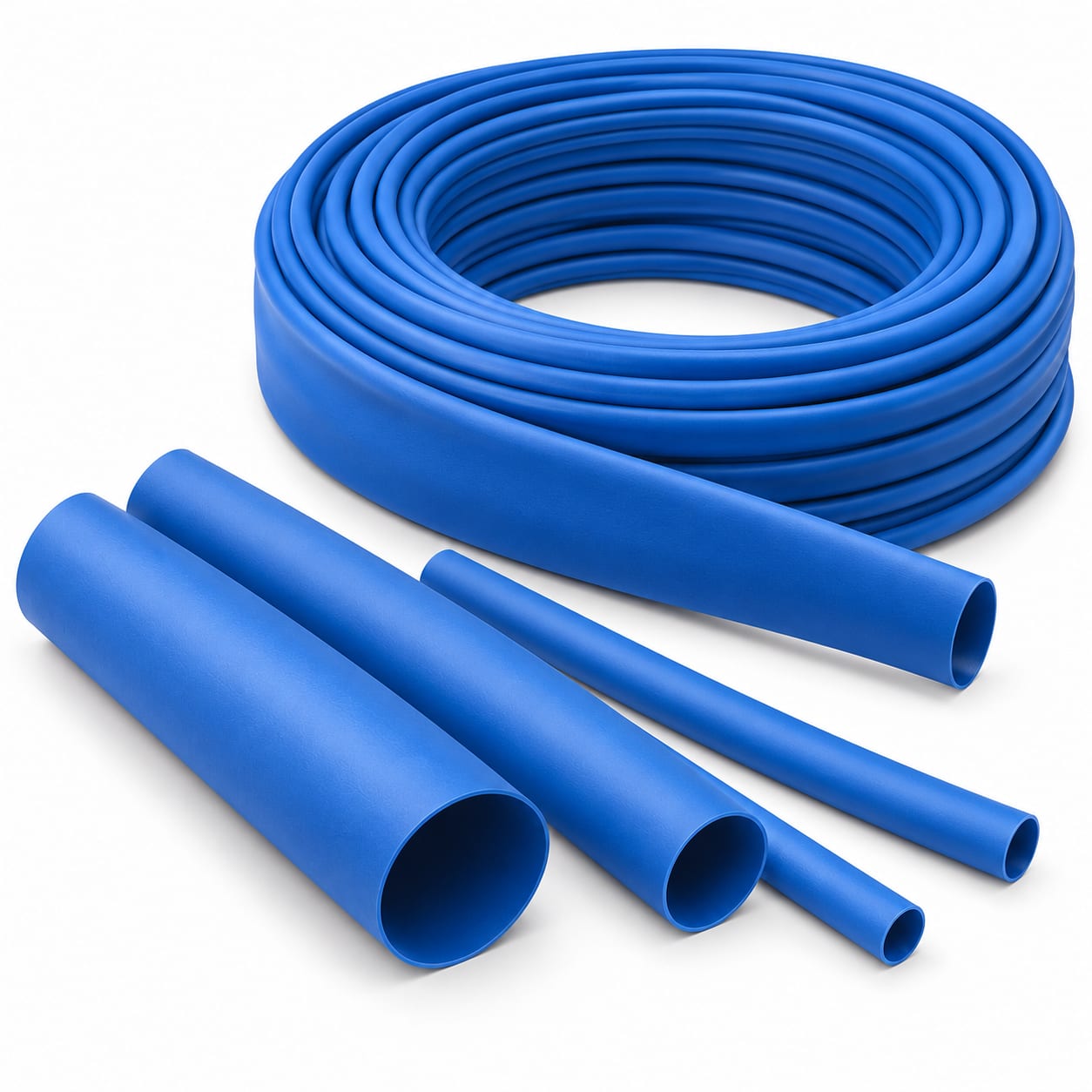

Blue Heat Shrink Sleeve | G-Apex G5 | Made in Taiwan | Flame Retardant Material

Description

Blue Heat Shrink Sleeve | G-Apex G5 | Made in Taiwan | Flame Retardant Material

G-Apex G5 is a general-purpose, flexible, highly flame-retardant polyolefin heat shrinkable tubing engineered for outer insulation, mechanical protection, and phase identification. Manufactured in Taiwan by G-Apex. G5 complies with global RoHS regulations and delivers exceptional physical, chemical, and electrical performance.

Featuring a 2:1 shrink ratio with a minimum shrink temperature of 70°C and full recovery at 110°C, it forms a tight, reliable protective barrier over wire splices, busbar connections, cable lugs, and electronic components. Certified to UL224 (File No. E255532, 125°C, VW-1, 600V), it ensures maximum safety and durability in electrical switchgear, distribution panels, and industrial wiring harnesses.

Available Sizes:
• 1.5mm
• 2.5mm
• 3mm
• 4mm
• 5mm
• 6mm
• 8mm
• 10mm
• 12mm
• 15mm
• 20mm
• 25mm
• 30mm
• 35mm
• 40mm
• 50mm
• 60mm
• 70mm
• 80mm
• 90mm
• 100mm

Technical Specifications

Brand: G-Apex

Model: G5

Origin: Made in Taiwan (Taiwan Yun Lin Electronic Co., Ltd.)

Material: Cross-linked Polyolefin

Color: Blue

Shrink Ratio: 2:1

Continuous Operating Temperature: -55°C to +125°C

Minimum Shrink Temperature: 70°C

Full Recovery Temperature: Above 110°C

Voltage Rating: 600V

Flammability: UL 224 VW-1 (Pass)

Dielectric Strength: ≥19.7 kV/mm (Typical Value: 22 kV/mm)

Tensile Strength: ≥10.3 MPa (Typical Value: ≥11.3 MPa)

Elongation at Break: ≥200% (Typical Value: ≥400%)

Approvals & Compliance: UL Recognized (E255532), RoHS Compliant

Available Sizes: 1.5mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm

Application: Phase Identification (B-Phase / Neutral Identification), Wire Harnessing, Electrical Termination Insulation, Terminal Lug Protection, and Panel Wiring
