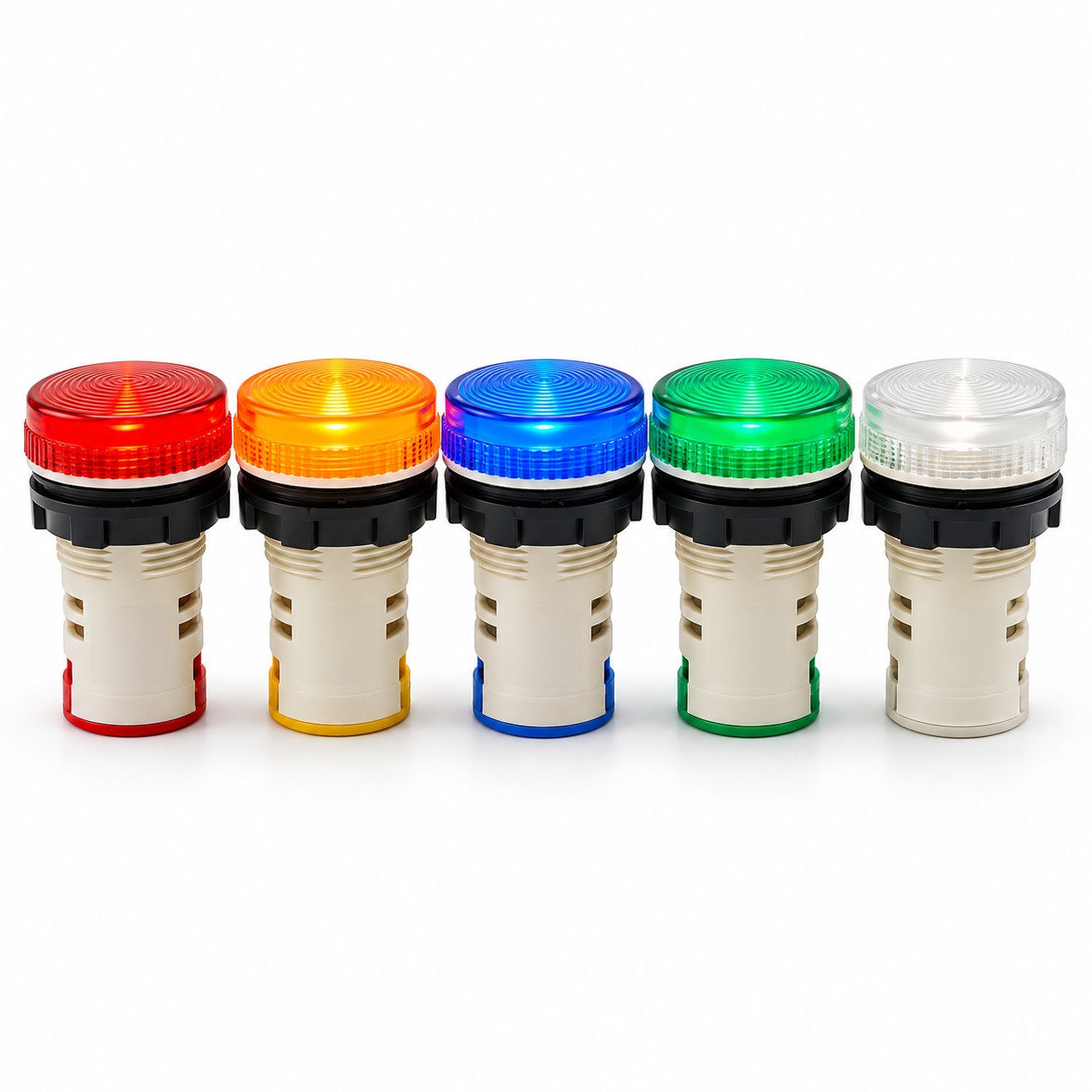

AD22-22DS LED Pilot Indicator Lights (22mm / 12V-450V AC) | ZAIN
The ZAIN AD22-22DS Series 22mm LED Pilot Indicator Lamps provide clear visual signaling and circuit monitoring across electrical switchgear, motor control centers, generator panels, and industrial automation equipment. Engineered with internal multi-voltage circuitry, these indicators operate across a wide input range from 12V AC up to 450V AC without requiring external resistors.
Constructed with a threaded cylindrical barrel designed for standard 22mm panel cutouts and secured firmly using a rear locking nut. Equipped with low-power LED chips beneath high-diffusion colored lenses and captive screw-clamp rear terminals for direct cable wiring.
Color Options:
• RED
• YELLOW
• BLUE
• GREEN
• WHITE
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: 22mm LED Pilot Indicator Light / Signal Lamp
Model Series: AD22-22DS
Mounting Hole Diameter: 22mm
Operating Voltage: 12V – 450V AC
Light Source: High-Efficiency LED
Available Colors: Red, Yellow, Blue, Green, White
Mounting Method: 22mm Panel Cutout with Threaded Backnut
Terminal Type: Screw Clamp Terminals
Standards Compliance: CE Certified
Application: Distribution Boards, Motor Control Centers, Phase Sequence Indicators, Control Desks, and Automation Enclosures
