Stainless Steel 316 Spring Lock Washers (M4 to M16) | Split Lock Washers DIN 127B

Description

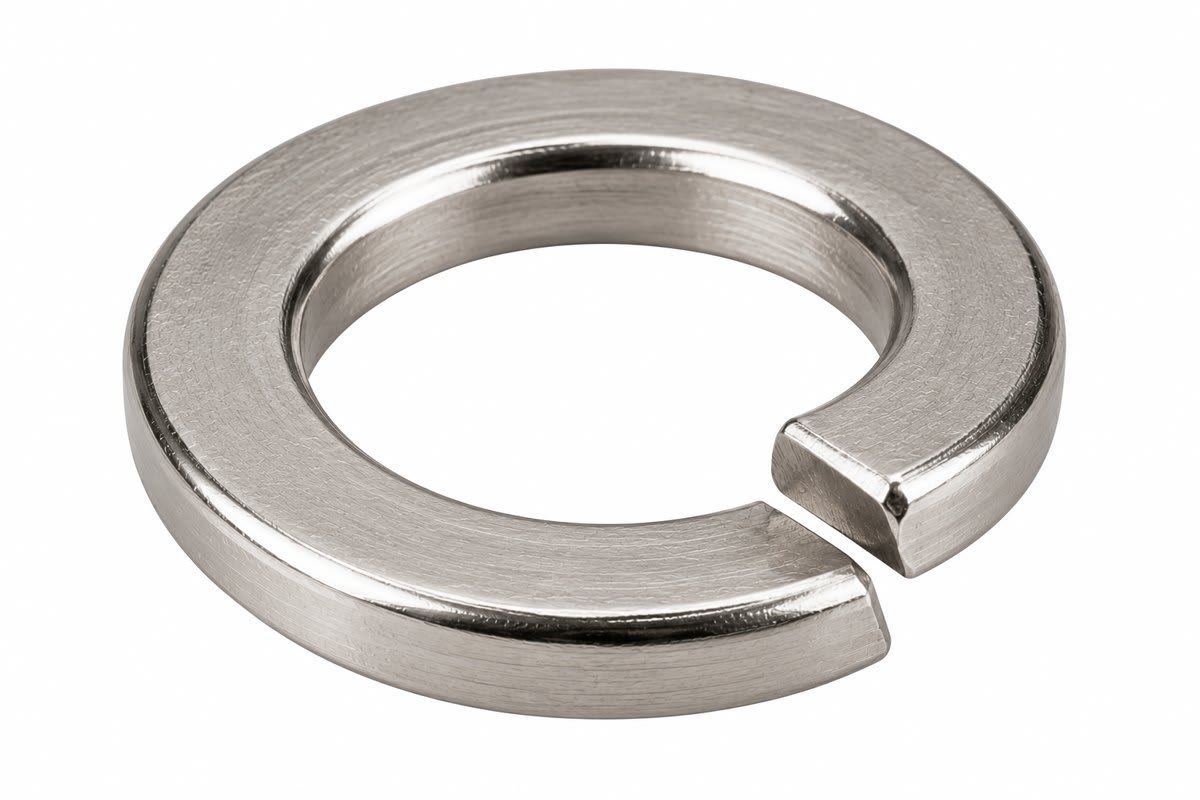

Stainless Steel 316 Spring Lock Washers | GENERIC

These Grade 316 (A4 marine grade) stainless steel helical spring lock washers provide continuous tension to prevent bolted joints, machine assemblies, and structural fixtures from loosening under mechanical vibration and cyclic dynamic loading. The split spring ends bite into the mating nut and substrate face to resist reverse rotation.

Grade 316 austenitic stainless steel formulation contains molybdenum, providing corrosion protection in saline, maritime, chemical, and industrial outdoor environments.

Manufactured to DIN 127B metric split helical spring washer specifications for pairing with metric hex bolts, threaded rods, machine screws, and nuts.

Available Sizes & Nominal Hole Diameters:
• M4 (Inside Dia: ~4.1mm | Outside Dia: ~7.6mm | Thickness: ~0.9mm)
• M6 (Inside Dia: ~6.1mm | Outside Dia: ~11.8mm | Thickness: ~1.6mm)
• M8 (Inside Dia: ~8.1mm | Outside Dia: ~14.8mm | Thickness: ~2.0mm)
• M10 (Inside Dia: ~10.2mm | Outside Dia: ~18.1mm | Thickness: ~2.2mm)
• M12 (Inside Dia: ~12.2mm | Outside Dia: ~21.1mm | Thickness: ~2.5mm)
• M16 (Inside Dia: ~16.2mm | Outside Dia: ~27.4mm | Thickness: ~3.5mm)

Technical Specifications

Brand: GENERIC

Product Type: Helical Split Spring Lock Washer

Material: Stainless Steel Grade 316 (Marine Grade A4)

Standard: DIN 127B

Nominal Metric Sizes: M4, M6, M8, M10, M12, M16

Corrosion Resistance: Salt Spray, Marine Atmospheres, and Chemical Exposure

Application: Marine Assemblies, Pumps, Motors, Industrial Machinery, Outdoor Frameworks, and Vibration-Prone Bolted Joints
