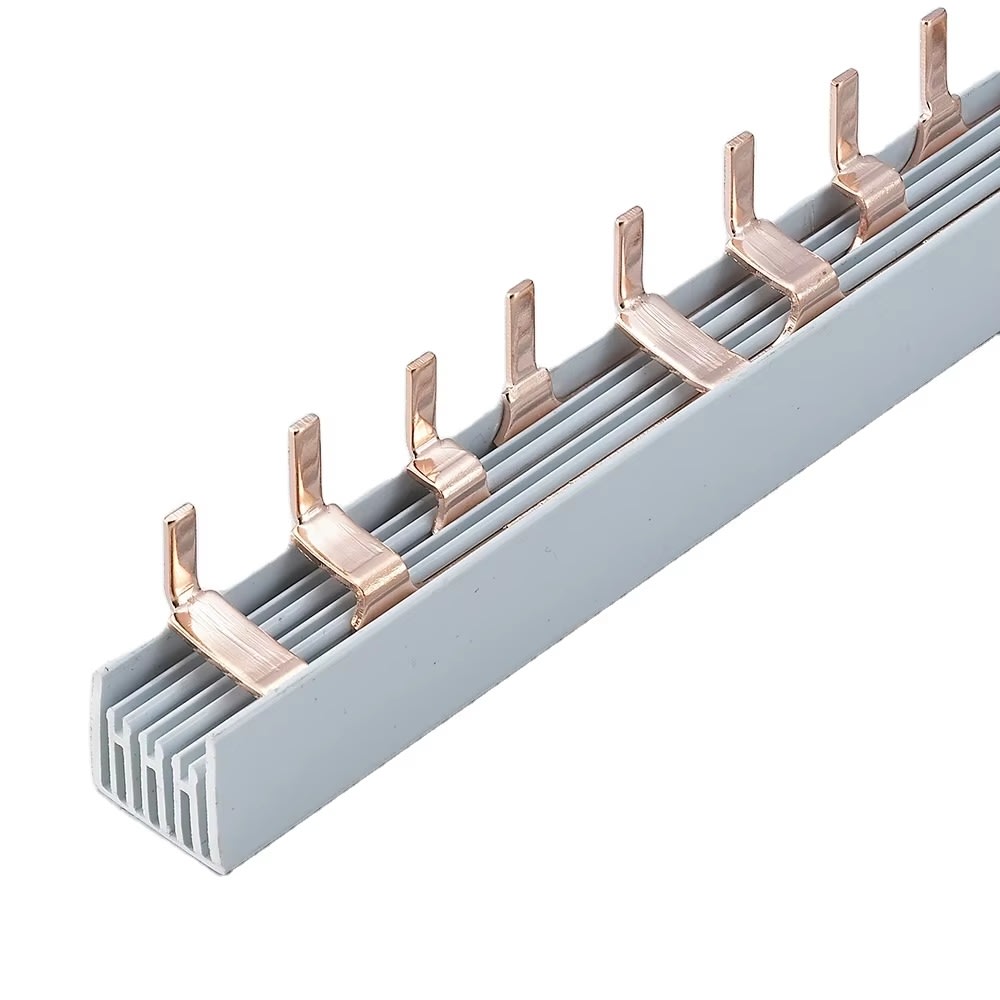

Loyed Comb Busbar 1 Meter (1P, 2P, 3P, 4P) | Pin Type & Fork Type

Description

Loyed Comb Busbar (1 Meter Standard Length)

The Loyed Comb Busbar series is engineered for clean, reliable, and compact power distribution across miniature circuit breakers (MCBs), isolators, RCDs, and modular DIN-rail switchgear. Manufactured with high-conductivity electrolytic copper conductors housed inside a heavy-duty flame-retardant rigid PVC insulating profile, it ensures safe inter-device connection while significantly reducing installation time and eliminating wire clutter inside distribution boards and consumer units.

Available in both Pin Type and Fork Type (U-Type) profiles across 1 Pole, 2 Pole, 3 Pole, and 4 Pole configurations, ensuring maximum surface contact, minimal electrical resistance, high short-circuit withstand strength, and superior thermal stability.

Available Pole / Ratings:
• 1P 50A
• 2P 50A
• 3P 63A
• 4P 63A

Technical Specifications

Brand: Loyed

Product Type: Modular Comb Busbar

Standard Length: 1 Meter

Conductor Material: High-Conductivity Electrolytic Copper

Configurations & Current Ratings:
• 1P (Single Phase) – 50A
• 2P (Two Phase) – 50A
• 3P (Three Phase) – 63A
• 4P (Three Phase + Neutral) – 63A

Terminal Types: Pin Type / Fork Type (U-Type)

Rated Operational Voltage: 230V / 400V AC

Application: Distribution Boards, Consumer Units, MCB Interconnections, Control Panels, and Modular Switchgear Enclosures
