Insulated Pin Terminals PTV Series | ZAIN
The ZAIN PTV Series Insulated Pin Terminals provide standard mechanical crimp wire termination for multi-stranded copper conductors entering European-style terminal strips, compact contactor clamps, and narrow terminal blocks. The rigid flat blade pin prevents stranded wire splaying, damage from tightening screws, and loose connections.
Constructed from tinned electrolytic copper for electrical conductivity and corrosion protection, fitted with an insulated color-coded PVC sleeve. The internal flared entrance allows stripped conductors to slide smoothly into the crimp barrel without catching.

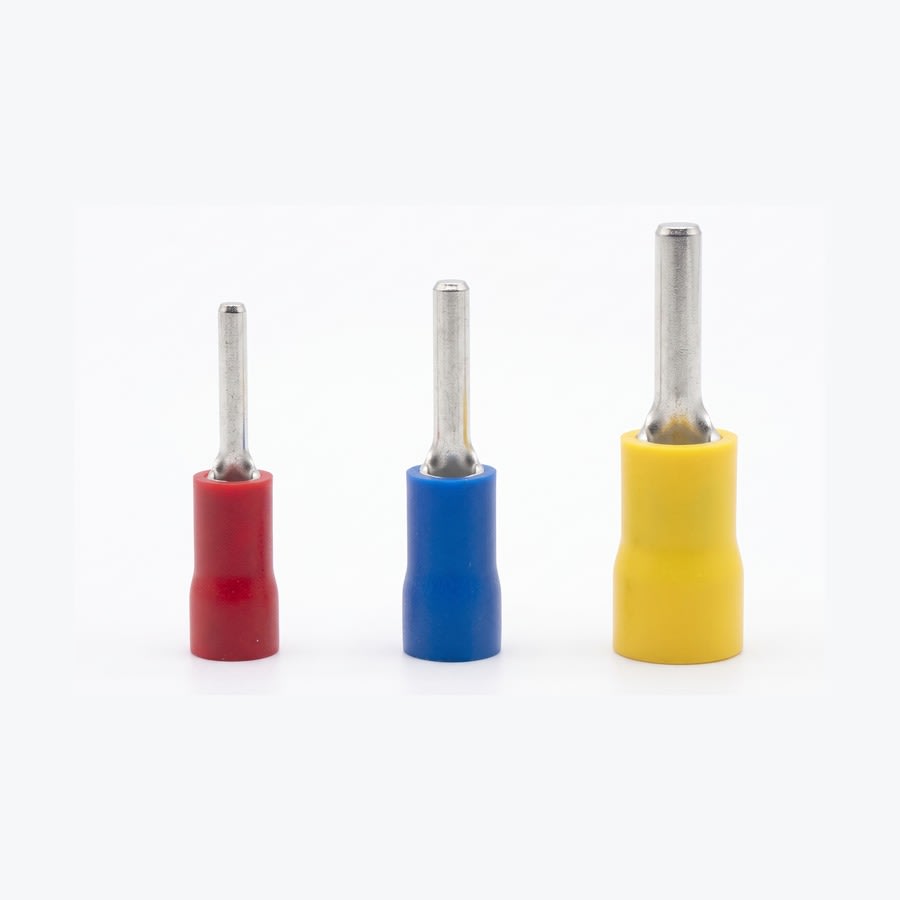

Available Sizes:
• PTV1.25-12 (Red / 0.5-1.5mm²)
• PTV2-12 (Blue / 1.5-2.5mm²)
• PTV5.5-13 (Yellow / 4.0-6.0mm²)
Technical Specifications
Brand: ZAIN
Country of Origin: China
Product Type: Insulated Crimp Pin / Blade Terminal (PTV Series)
Terminal Material: Electrolytic Copper (Tin-Plated)
Insulation Material: Color-Coded PVC
Wire Range: 0.5mm² to 6.0mm²
Maximum Voltage: 600V
Operating Temperature Range: -10°C to +75°C
Termination Method: Hand Crimp Tool / Ratchet Terminal Crimper
Application: Terminal Blocks, Relay Bases, Motor Starters, Control Panels, and Industrial Automation
