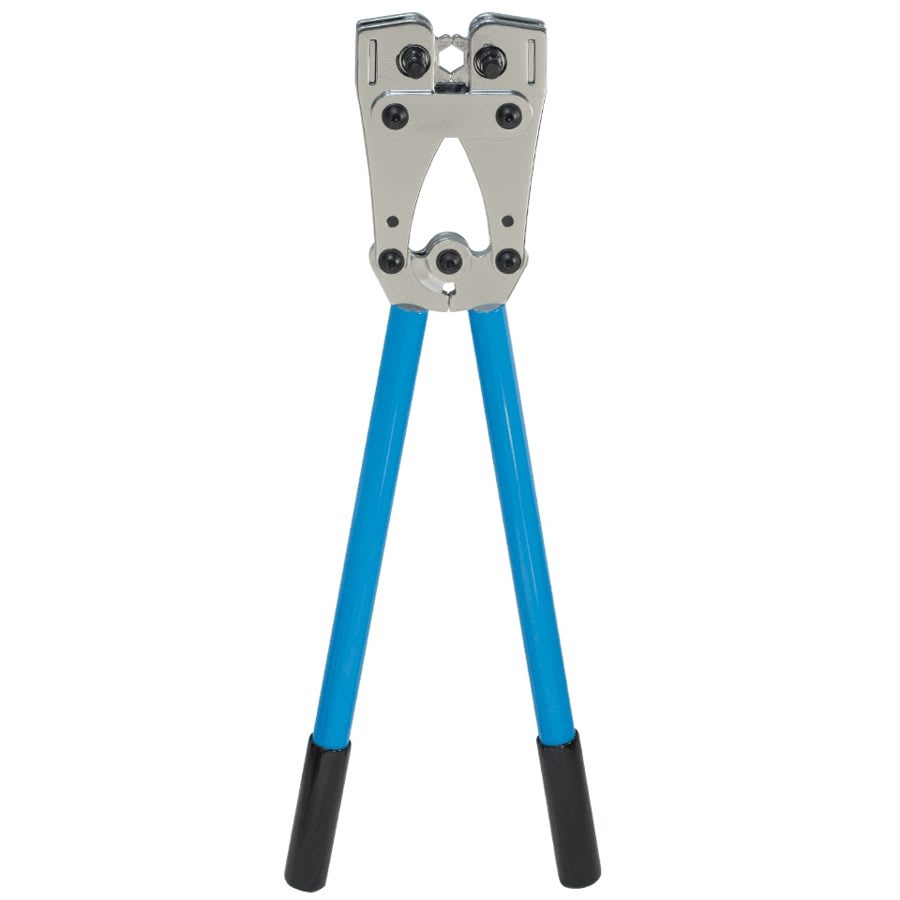

HT-T51 Hexagonal Cable Lug Crimper with Rotatable Dies (6-120 mm²)
The Hanlong HT-T51 is a professional high-capacity mechanical cable lug crimping tool designed for copper and aluminum cable lugs, terminals, and connectors from 6 mm² up to 120 mm² in electrical and power utility applications.
Equipped with built-in revolving hexagonal crimping dies, it eliminates the need for separate die sets. The spring-loaded locking pins allow operators to quickly rotate and lock into the desired crimping size in seconds. Each die setting features embossed gauge codes for positive identification and accurate crimp calibration. Its central hexagonal crimp profile applies uniform radial compression around conductor strands, ensuring maximum conductivity and vibration resistance. Long leverage handles with cushioned anti-slip grips provide high mechanical leverage with reduced operator effort.
Technical Specifications
Brand: Hanlong Tools
Model: HT-T51
Tool Type: Hexagonal Cable Lug Mechanical Crimper
Crimping Capacity: 6 – 120 mm²
Crimp Profile: Central Hexagonal Compression
Die Mechanism: Integrated Revolving / Rotatable Dies with Spring-Loaded Locking Pins
Compatible Conductors: Copper (Cu) and Aluminum (Al) Heavy-Duty Cable Lugs and Ring Terminals
Handle Construction: Extended Tubular Steel Handles with Anti-Slip Molded Grips
Application: Power Distribution Networks, Transformer Connections, Heavy Industrial Cabling, and Switchgear
