Description

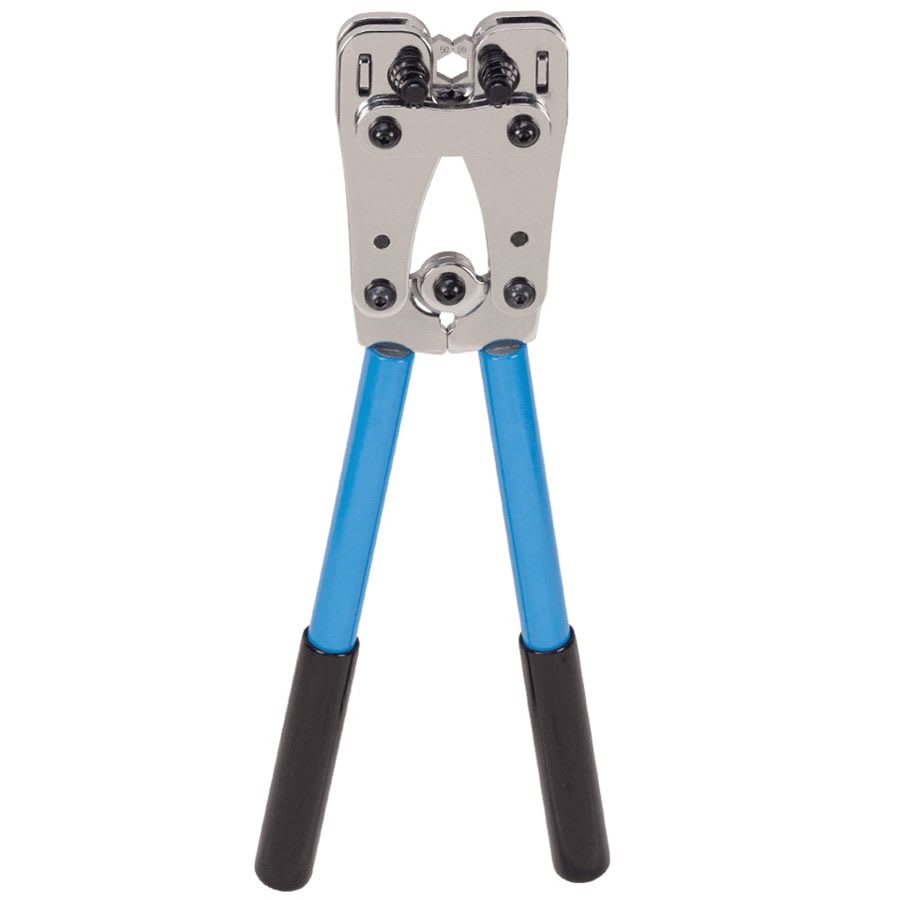

HT-T21D Hexagonal Cable Lug Crimper with Rotatable Jaw (6-50 mm²)
The Hanlong HT-T21D is a versatile, high-leverage mechanical cable lug crimper designed for terminating non-insulated copper and aluminum cable lugs and terminals from 6 mm² to 50 mm².
Featuring integrated revolving hexagonal crimping jaws, it provides quick size transitions without loose die pieces. The spring-loaded locking pin mechanism enables rapid adjustment to matching lug sizes (6, 10, 16, 25, 35, 50 mm²) with clearly embossed gauge markings for foolproof alignment.
The hexagonal central crimp compression delivers a secure, void-free connection between the cable core and the lug barrel for low-resistance current flow. Its compound mechanical leverage handles with anti-slip rubber grips minimize user effort and maximize job-site safety.
Technical Specifications
Brand: Hanlong Tools
Model: HT-T21D
Tool Type: Hexagonal Cable Lug Mechanical Crimper
Crimping Capacity: 6 – 50 mm²
Crimp Profile: Hexagonal Central Compression
Die Type: Built-In Rotatable Hex Jaws with Spring-Loaded Locking Pin
Compatible Terminals: Copper (Cu) & Aluminum (Al) Cable Lugs and Ring Terminals
Handle Design: High-Leverage Steel Arms with Ergonomic Anti-Slip Grips
Application: Switchboard Assemblies, Solar Inverter Terminations, Battery Banks, and Commercial Electrical Installations
