Description

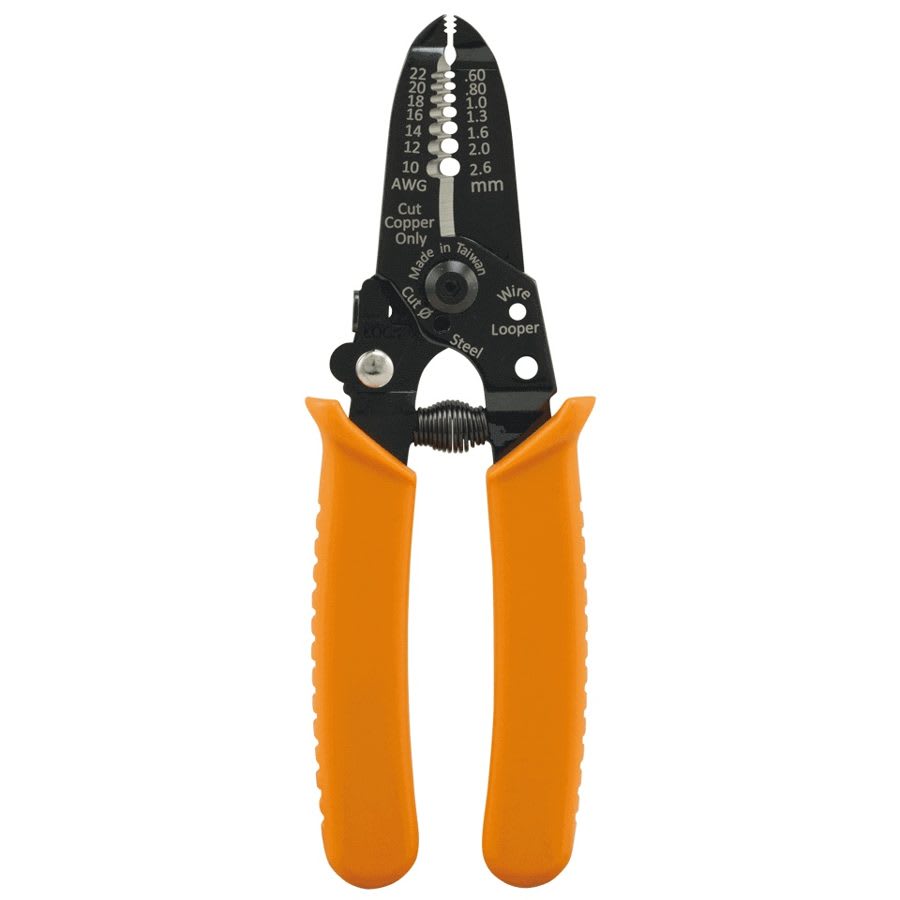

HT-5021 Multi-Purpose 5-in-1 Wire Stripper & Cutter
The Hanlong HT-5021 is an all-in-one professional wire preparation hand tool engineered for electrical wiring, control panel assembly, and precision electronics work. It features five distinct functions in a single compact chassis: wire stripping, wire cutting, steel wire shearing, plier gripping/pulling, and wire looping.
Equipped with precision-ground stripping cavities calibrated for 10, 12, 14, 16, 18, 20, and 22 AWG (0.6mm to 2.6mm) solid and stranded conductors to prevent nicking of copper cores. Includes a curved shear blade for soft copper/aluminum conductors, an integrated shear hole for up to Ø3mm steel wire, serrated plier tips for gripping and bending, a wire looper hole, and a comfort spring-loaded auto-opening grip with safety lock.
Technical Specifications
Brand: Hanlong Tools
Model: HT-5021
Tool Type: 5-in-1 Wire Stripper, Cutter & Plier
Stripping Capacity (AWG): 10, 12, 14, 16, 18, 20, 22 AWG
Stripping Capacity (Metric): 0.60, 0.80, 1.0, 1.3, 1.6, 2.0, 2.6 mm
Soft Wire Cutting: Curved Shear Blade for Copper (Cu) and Aluminum (Al)
Steel Wire Cutting: Dedicated Shear Hole up to Ø3.0 mm Steel Wire
Plier Nose: Serrated Jaws for Gripping, Twisting, and Pulling
Handle Design: High-Visibility Ergonomic Spring-Loaded Grips with Safety Lock
Application: Electrical Contracting, Panel Building, Electronics Prototyping, and Appliance Repair
