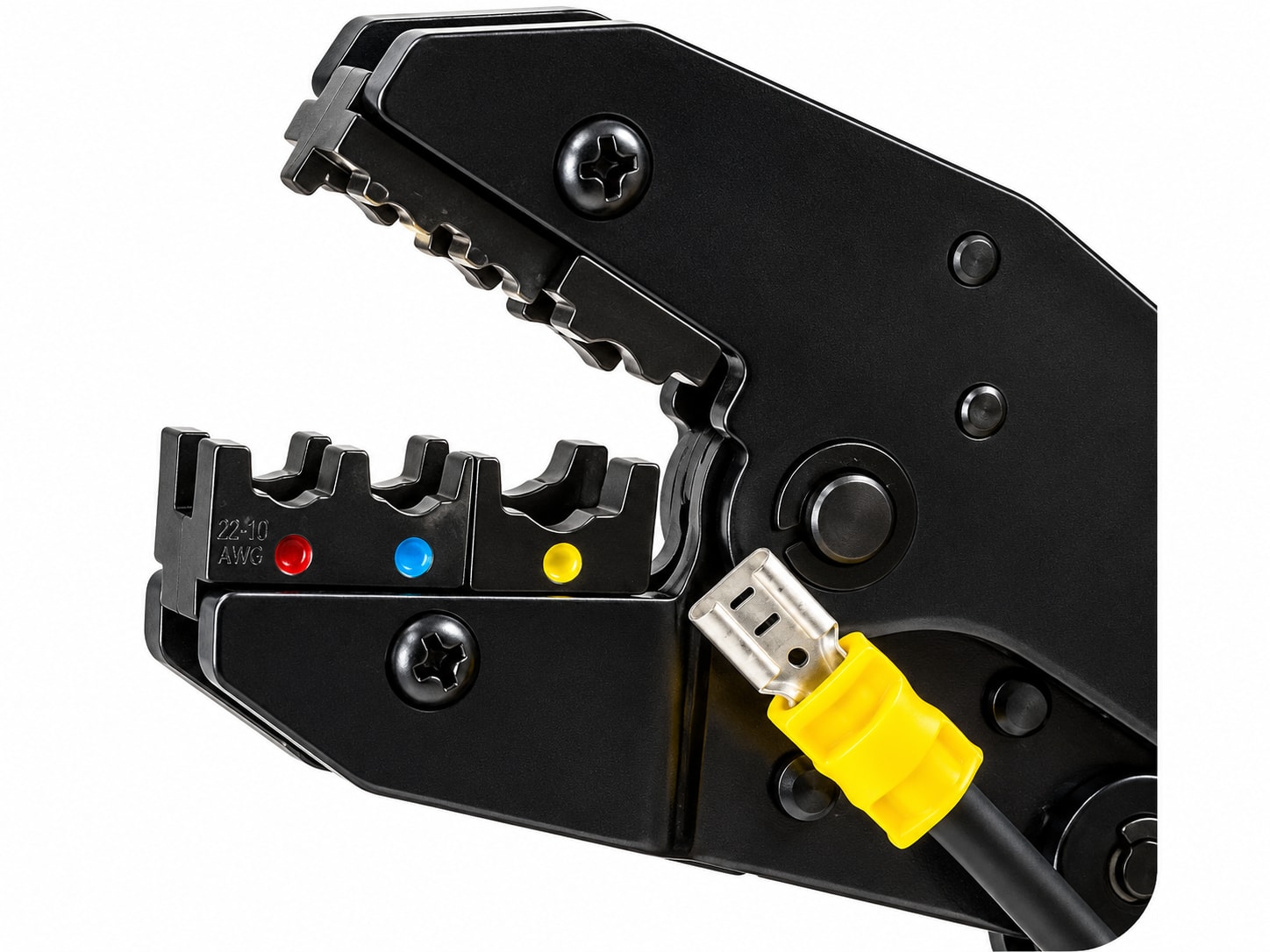

HT-236R Ratchet Crimping Tool for Insulated Terminals (0.5-6mm² / AWG 22-10)
The Hanlong HT-236R is a professional ratchet crimping tool engineered specifically for insulated electrical terminals, ring terminals, spade/fork connectors, and quick-disconnect push-on lugs ranging from 0.5 mm² to 6 mm² (AWG 22-10).
Features three color-coded, precision-machined crimping nests corresponding to industry-standard insulated terminal colors: Red (0.5-1.5mm² / AWG 22-16), Blue (1.5-2.5mm² / AWG 16-14), and Yellow (4.0-6.0mm² / AWG 12-10). Its double-crimp die profile simultaneously compresses the conductor wire core and the terminal insulation sleeve for superior strain relief and vibration resistance. Includes a full-cycle ratcheting mechanism with quick safety release.
Technical Specifications
Brand: Hanlong Tools
Model: HT-236R
Tool Type: Ratchet Crimping Tool for Insulated Terminals
Crimping Capacity: 0.5 – 6.0 mm² (AWG 22 – 10)
Crimping Cavities: Red (0.5-1.5mm²), Blue (1.5-2.5mm²), Yellow (4.0-6.0mm²)
Compatible Terminals: Pre-Insulated Ring, Spade/Fork, Pin, Blade, Bullet, and Push-On Disconnect Terminals
Mechanism: Full-Cycle Ratchet with Quick-Release Safety Latch
Frame Construction: Heavy-Duty Carbon Steel with Black Oxide Finish
Handle Design: Ergonomic Dual-Color Non-Slip Grips
Application: Automotive Wiring, Control Panels, Marine Electrical Systems, and Commercial Wiring
