HS-30J Ratchet Crimping Tool for Insulated Terminals | ZAIN

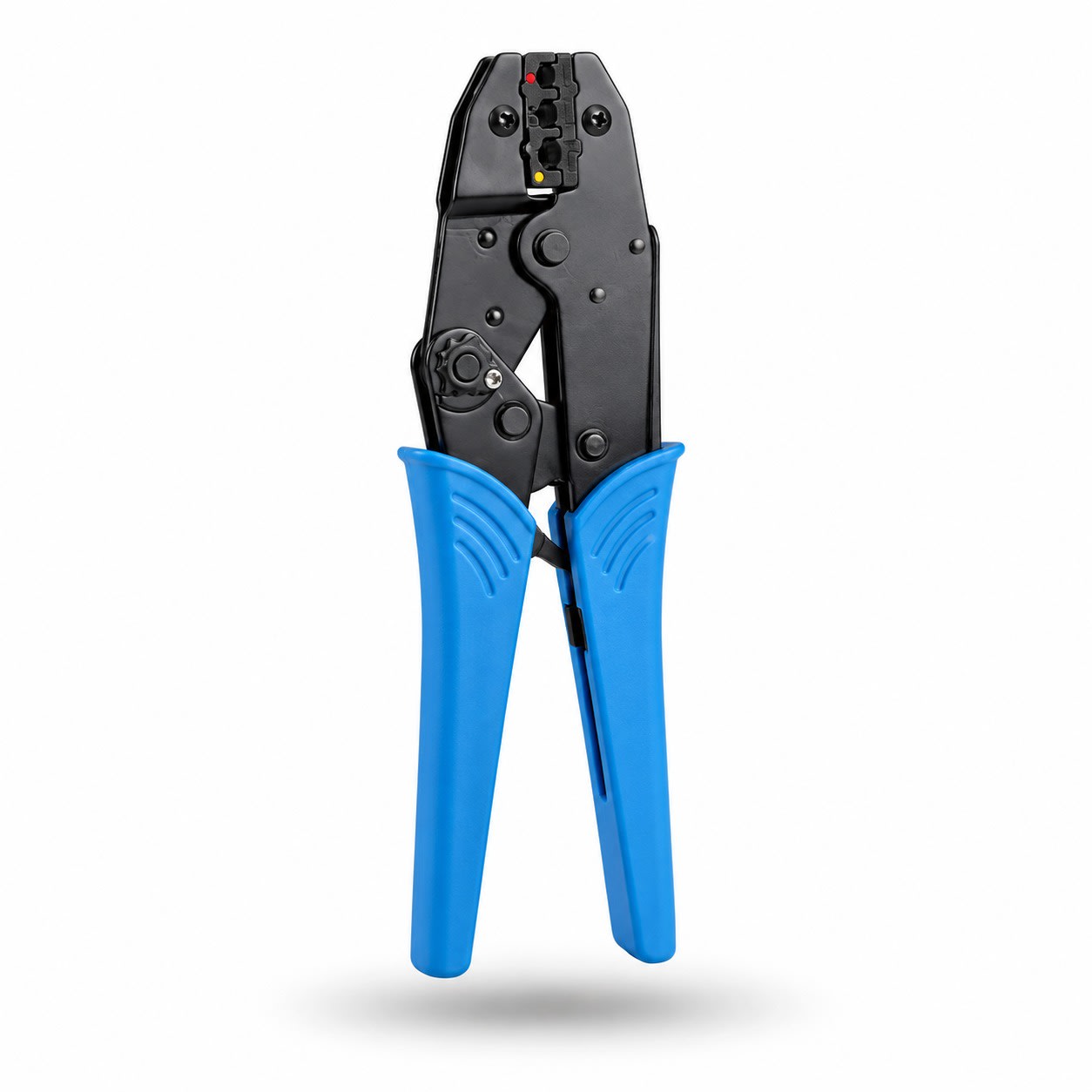

The ZAIN HS-30J Ratchet Crimping Plier is engineered for crimping vinyl and nylon pre-insulated electrical terminals (rings, forks, butt connectors, and spade disconnects) from 0.5mm² to 6.0mm² (AWG 22-10). The jaw features three distinct, color-coded crimping cavities corresponding to standard terminal colors (Red, Blue, and Yellow).
The self-locking ratchet system ensures proper crimp compression before the tool handles open, ensuring consistent mechanical retention and electrical conductivity.
Available Specifications:
• HS-30J (0.5mm² – 6.0mm²)
Technical Specifications
Brand: ZAIN
Country of Origin: China
Model: HS-30J
Crimping Capacity: 0.5mm² – 6.0mm² (AWG 22 – 10)
Applicable Terminals: Insulated Rings, Forks, Pin Lugs, and Receptacles (Red: 0.5-1.5, Blue: 1.5-2.5, Yellow: 4-6mm²)
Mechanism: Ratchet Action with Pressure Adjustment Wheel
Material: Hardened Carbon Steel with Non-Slip Grip Handles
Application: Automotive Electrics, Control Panel Wiring, and Maintenance Service
